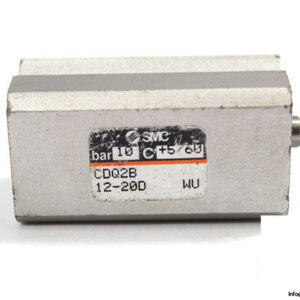

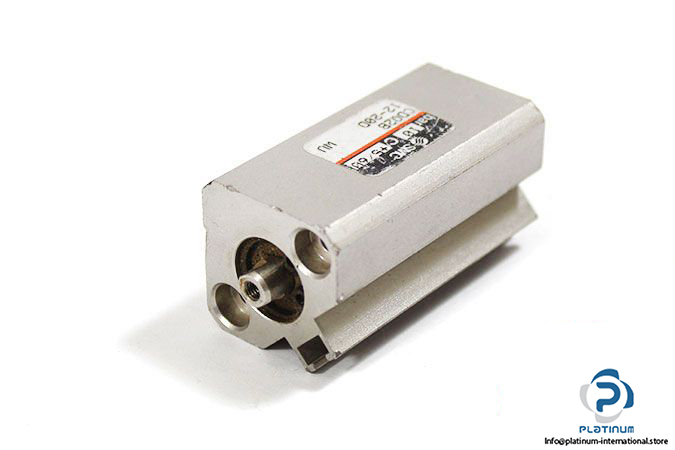

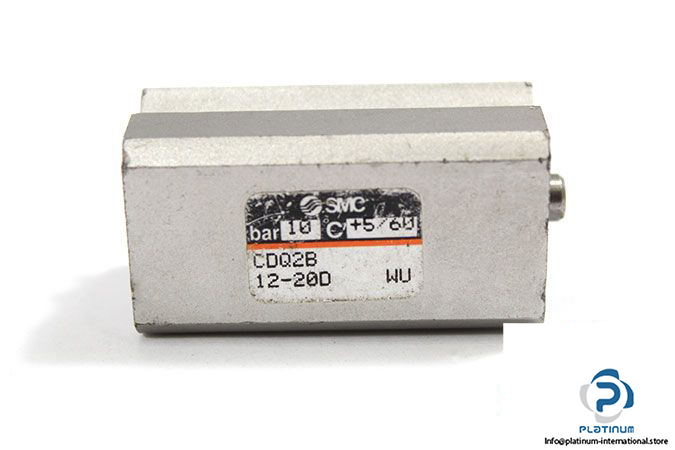

Manufacturer: SMC

Type: DOUBLE ACTING COMPACT CYLINDER WITH AUTO SWITCH

Series: CQ2

Model: CDQ2B12-20D

Material

  Cylinder tube: Aluminum alloy

  Piston:  Aluminum alloy

  Piston rod: Stainless steel, Carbon steel

Mounting: Through-hole (Standard)

Bore size: 12 mm

Stroke Length: 20 mm

Compact cylinder type: Standard

Allowable kinetic energy: 0.022 J

Rod Type: Single Rod

Piston Speed: 30 to 400 mm/s

Mode of operation: Double acting

Operating pressure Range: 0.07 … 1 Mpa

Proof pressure: 1.5 Mpa

Temperature: 5 … 60 °C

Weight: 0.069 kg
