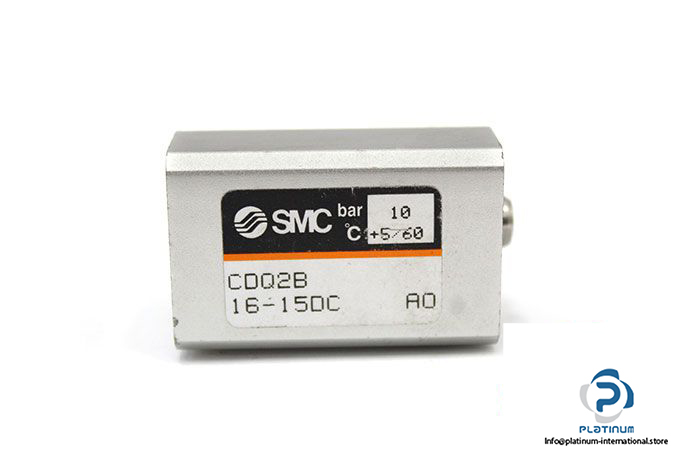

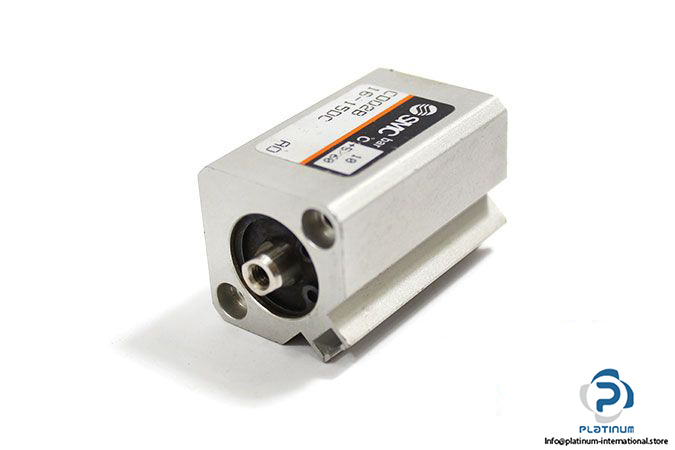

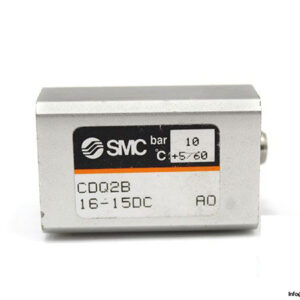

Manufacturer: SMC

Type: DOUBLE ACTING COMPACT CYLINDER WITH AUTO SWITCH

Series: CQ2

Model: CDQ2B16-15DC

Material

  Cylinder tube: Aluminum alloy

  Piston:  Aluminum alloy

  Piston rod: Stainless steel, Carbon steel

Mounting style: Through-hole/Both ends tapped common (Standard)

Bore size: 16 mm

Stroke Length: 15 mm

Piston speed: 50 … 500 mm/s

Cushion: with Rubber Bumper

Operating medium: Compressed air

Mode of operation: Double acting

Proof Pressure: 1.5 MPa

Operating pressure Range: 0.07 MPa … 1.0 MPa

Temperature: 5 … 60 °C

Weight: 0.09 kg
