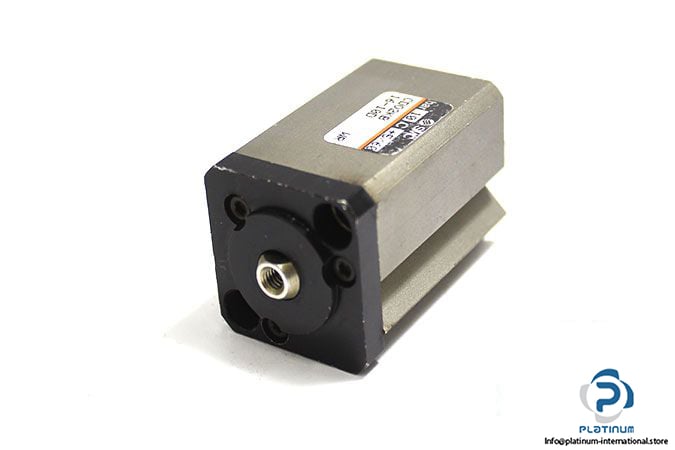

Manufacturer: SMC

Type: DOUBLE ACTING COMPACT CYLINDER WITH AUTO SWITCH

Series: CQ2

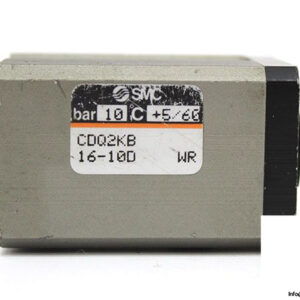

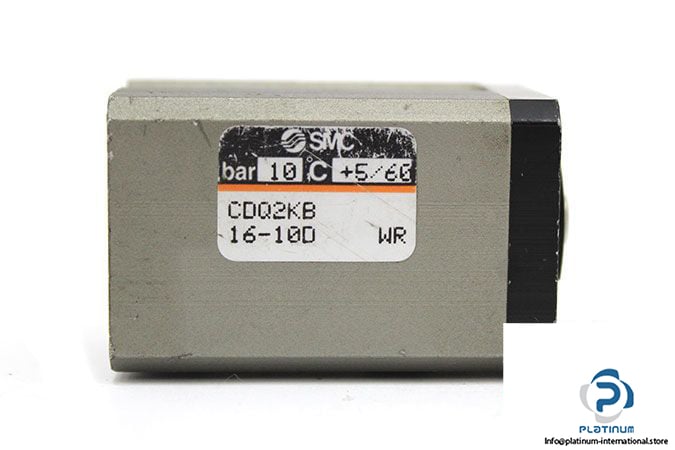

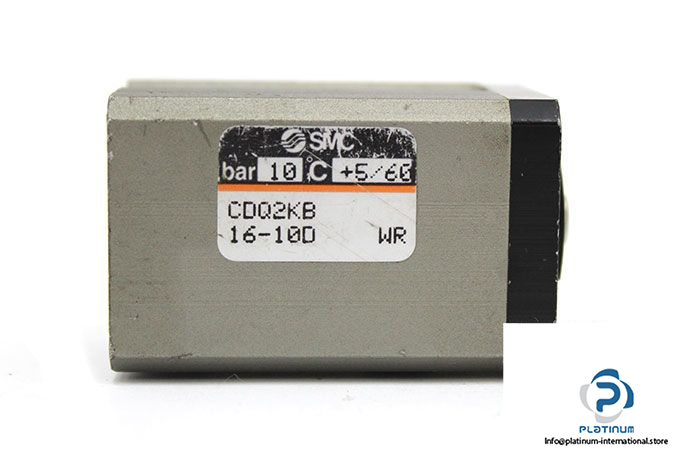

Model: CDQ2KB16-10D

Materials

  Cylinder tube: Aluminum alloy

  Piston:  Aluminum alloy

  Piston rod: Stainless steel, Carbon steel

Mounting: Through-hole (Standard)

Bore size: 16 mm

Stroke Length: 10 mm

Mode of operation: Double Acting

Fluid: Air

Operating pressure Range: 0.07 … 1 Mpa

Piston speed:  50 … 500 mm/s

Proof pressure: 1.5 Mpa

Max. operating pressure: 1.0 Mpa

Temperature: -10 … 70 °C

Weight: 0.095 kg
