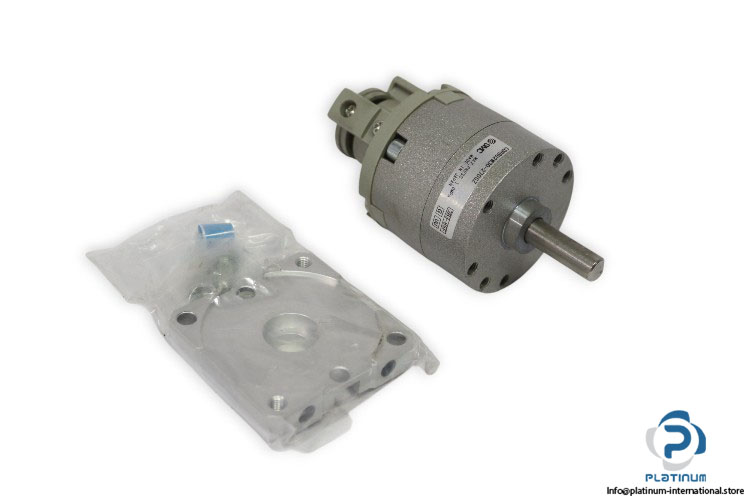

SMC CDRBU2W30270SZ Rotary Actuator

The SMC CDRBU2W30270SZ is a compact and high-precision rotary actuator engineered for smooth rotational motion in industrial automation systems. Featuring a double rack and pinion mechanism, it delivers consistent torque and accuracy through a full 270-degree rotation. Its robust design with adjustable air cushioning ensures reliable performance and extended service life in demanding pneumatic applications.

• Manufacturer: SMC
• Type: Rotary Actuator

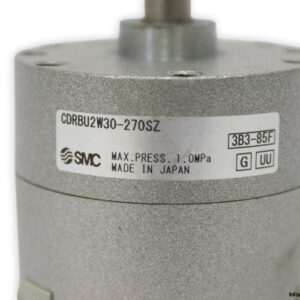

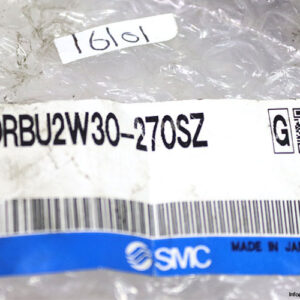

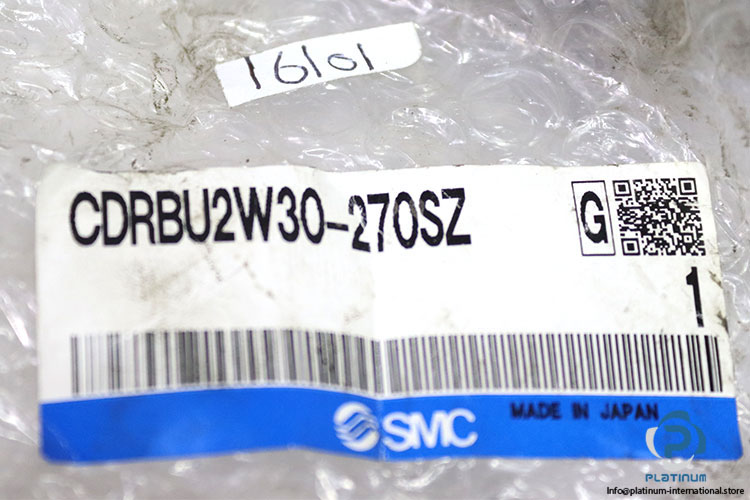

• Model: CDRBU2W30270SZ
• Code: 3B3-85F

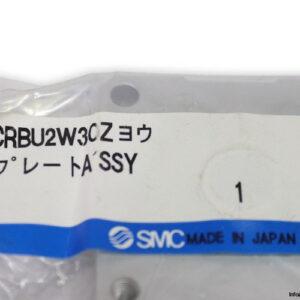

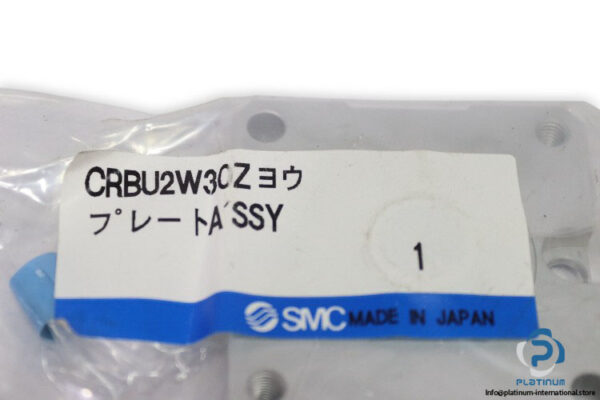

• Mounting Accessory: Plate Assy (CRBU2W30Z)
• Series: CRBU2

Technical Information

• Size: 30 mm
• Fluid: Air
• Pneumatic Connection: 5 mm
• Proof Pressure: 1.5 MPa
• Max. Operating Pressure: 1 MPa
• Rotating Angle: 270 degrees
• Actuation: Pneumatic, double rack and pinion mechanism
• Cushioning: Adjustable air cushioning
• Vane Type: Single vane
• Ambient and Fluid Temperature: 5 to 60°C
