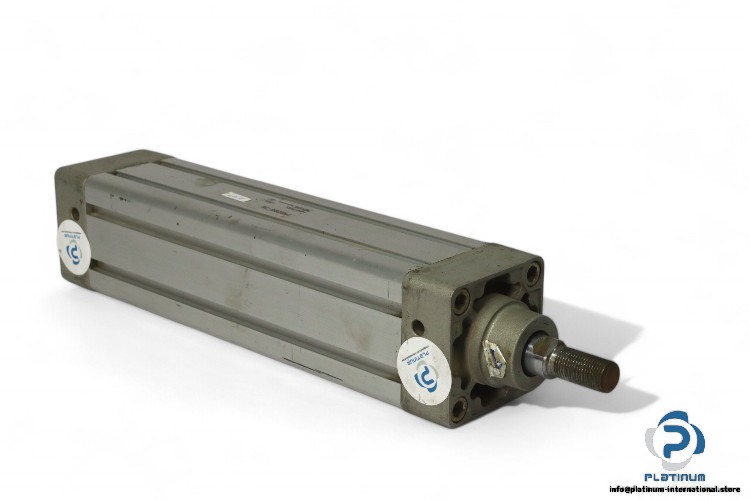

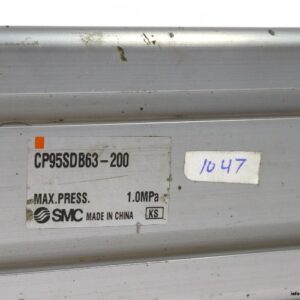

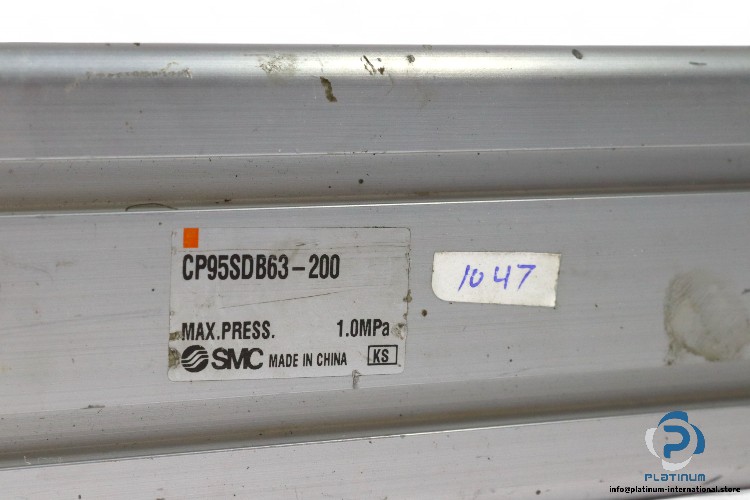

SMC ISO Cylinder CP95SDB63-200
The SMC ISO Cylinder CP95SDB63-200 is designed for use in industrial pneumatic systems, offering reliable performance with a double operation mode. This cylinder is built to handle compressed air efficiently, featuring a 63 mm bore diameter and a 200 mm stroke, making it suitable for a wide range of applications.
Manufacturer: SMC
Type: ISO Cylinder
Model: CP95SDB63200
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 200 mm
- Bore x Stroke: 63 x 200 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 350 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
