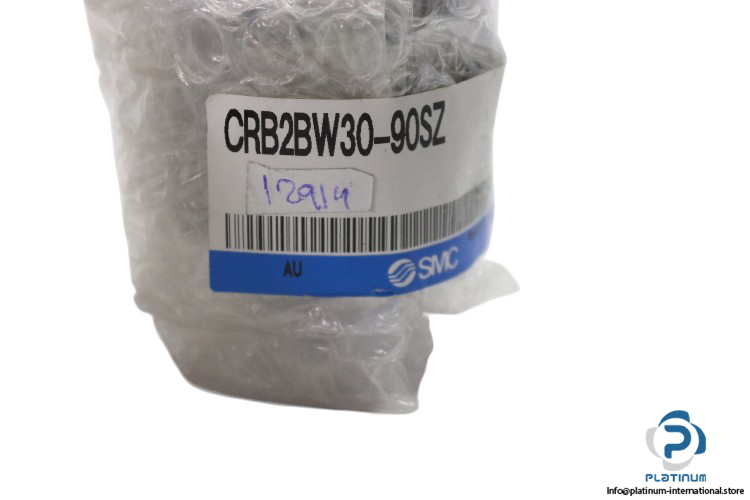

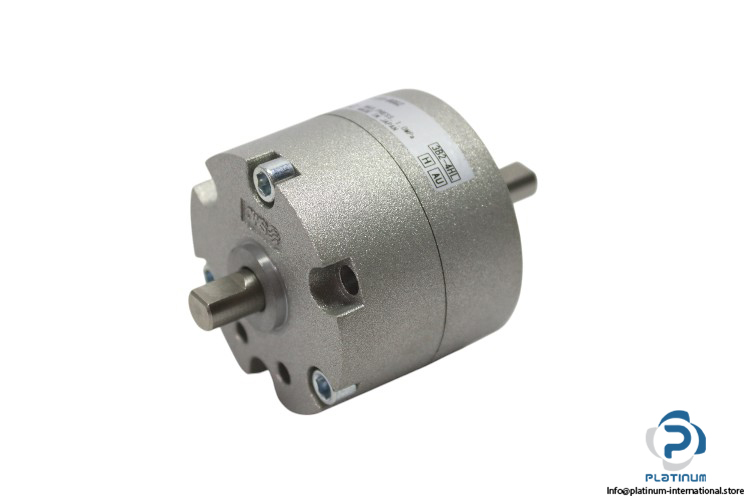

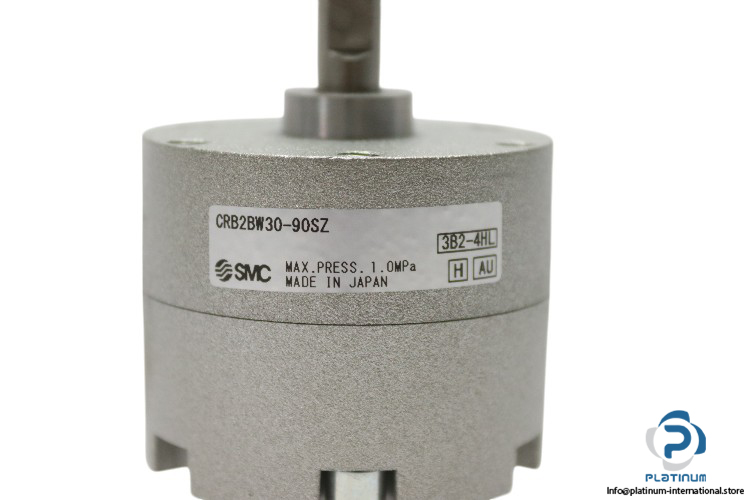

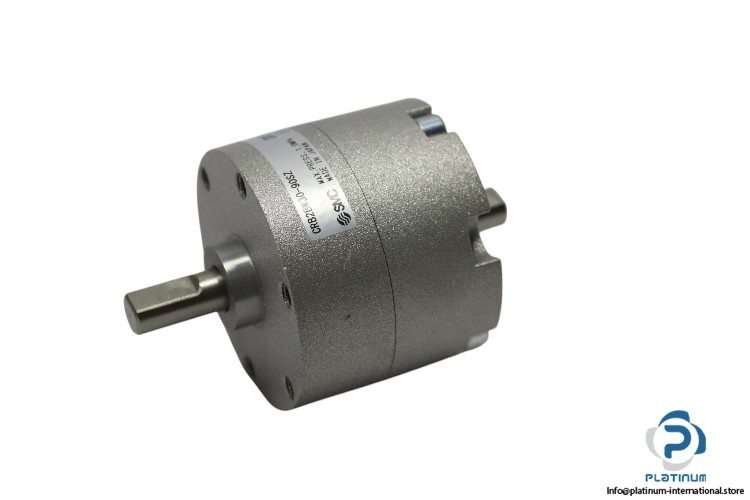

SMC CRB2BW3090SZ “ Rotary Actuator

The SMC CRB2BW3090SZ rotary actuator provides precise and efficient rotation for a variety of industrial applications. Built for high performance with a 90-degree rotating angle, it offers reliable operation with a robust pneumatic connection and adjustable features for flexible integration.

• Manufacturer: SMC
• Type: Rotary Actuator
• Model: CRB2BW3090SZ
• MNR: 3B2-4HL

Technical Information:

• Size: 30 mm
• Fluid: AIR
• Pneumatic Connection: 7 mm
• Proof Pressure: 1.5 Mpa
• Max. Operating Pressure: 1 Mpa
• Rotating Angle: 90 degrees
• Flange Assembly: 25
• Auto Switch Unit: 38
• Angle Adjuster Unit: 150
• Ambient and Fluid Temperature: 5 to 60°C
