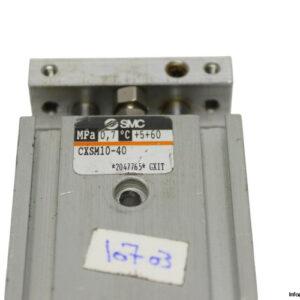

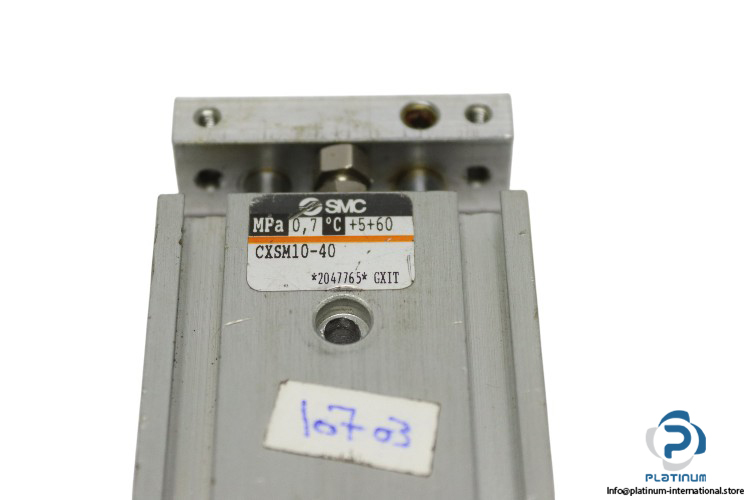

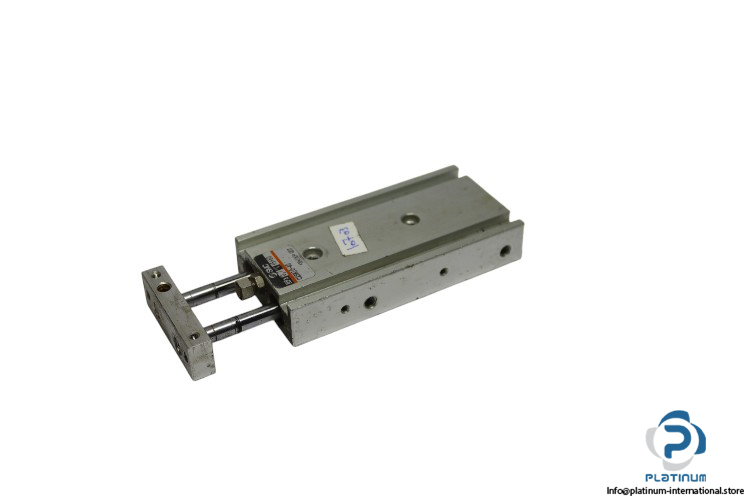

SMC Dual Rod Guided Cylinder CXSM10-40

The SMC Dual Rod Guided Cylinder CXSM10-40 is designed to provide precise and reliable linear motion in pneumatic systems. With a stroke length of 40 mm and a rod diameter of 10 mm, this cylinder is ideal for applications that require high stability and accuracy. The cylinder operates at a maximum pressure of 0.7 MPa and uses a slide bearing type for smooth operation. With a port size of 3 mm and a wide temperature range of -10°C to 60°C, this cylinder ensures optimal performance in various industrial environments.

Manufacturer: SMC

Type: Dual Rod Guided Cylinder

Model: CXSM10-40

Part No.: 2047765

Technical Specifications

• Fluid: Air
• Stroke Length: 40 mm
• Rod Diameter: 10 mm
• Operating Pressure Max.: 0.7 MPa
• Bearing Type: Slide Bearing
• Port Size: 3 mm
• Ambient and Fluid Temperature: -10 / 60 °C
