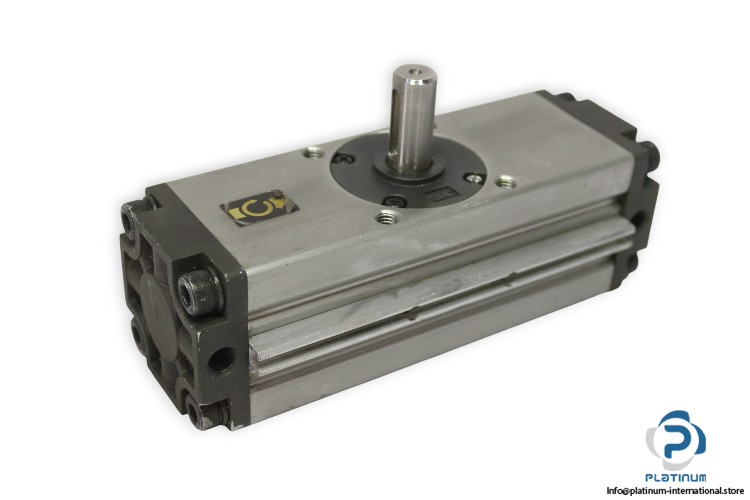

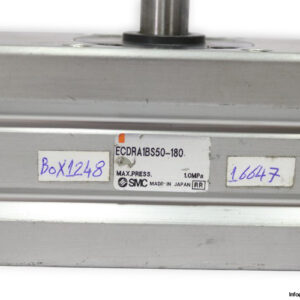

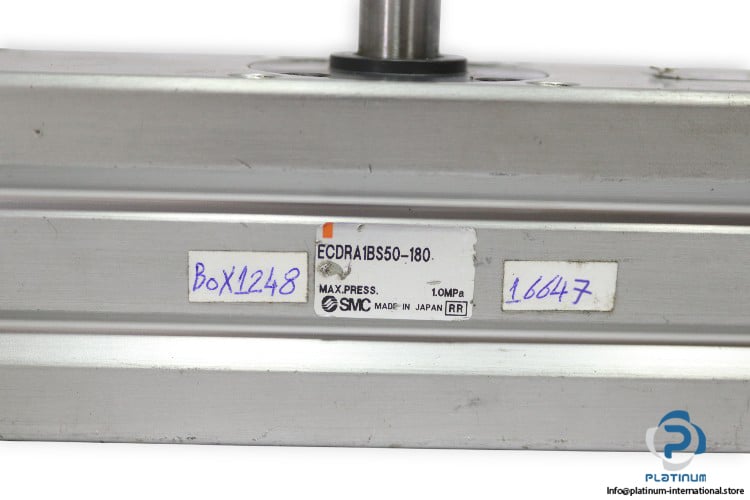

SMC ECDRA1BS50-180 Rotary Actuator
The SMC ECDRA1BS50-180 Rotary Actuator delivers precise rotational motion and reliable torque control for pneumatic automation systems. Built with a durable aluminum alloy body, it provides smooth operation with minimal backlash and accurate positioning in industrial applications.
Manufacturer: SMC
Type: Rotary Actuator
Model: ECDRA1BS50-180
Series: CDRA1
Technical Information
- Fluid: Air
- Size: 50
- Rotation: 180 degrees
- Cushion: Not attached, Air cushion
- Maximum Operating Pressure: 1.0 MPa
- Backlash: 1 degree
- Tolerance in Rotating Angle: 0 to plus 4 degrees
- Body Material: Aluminum alloy
- Pneumatic Connection: G1 by 8
- Temperature: 0 to 60 degree Celsius
