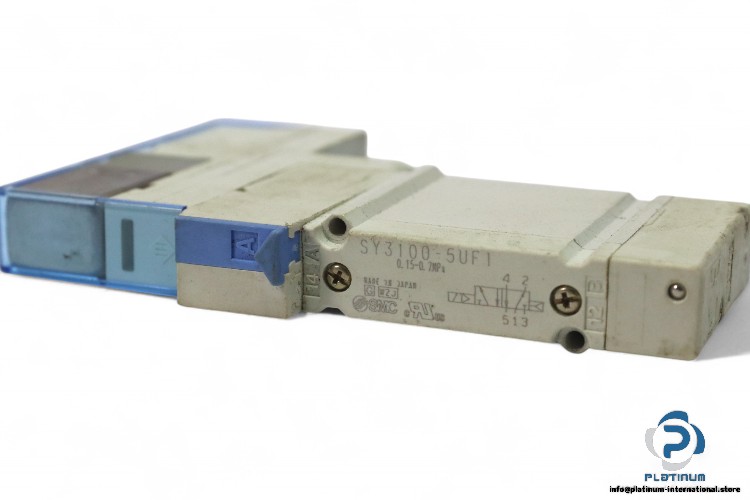

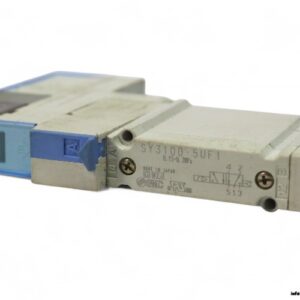

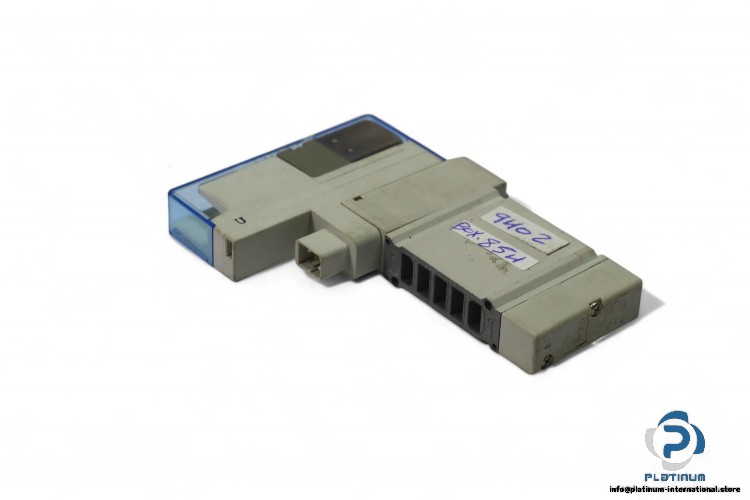

SMC Solenoid Valve SY3100-5UF1
The SMC SY3100-5UF1 Solenoid Valve is part of the SY3000 series and is designed for high-performance pneumatic applications. With a rated voltage of 24 VDC, this valve features a rubber seal, operates within a pressure range of 0.15 to 0.7 MPa, and includes a surge voltage suppressor to prevent electrical issues.
- Manufacturer: SMC
- Type: Solenoid Valve
- Model: SY3100-5UF1
- Rated Voltage: 24 VDC
- Series: SY3000
- Type of Actuation: 2-position, Single
- Seal Type: Rubber Seal
- Surge Voltage Suppressor: With light, Non-polar
- Operating Pressure: 0.15 to 0.7 MPa
