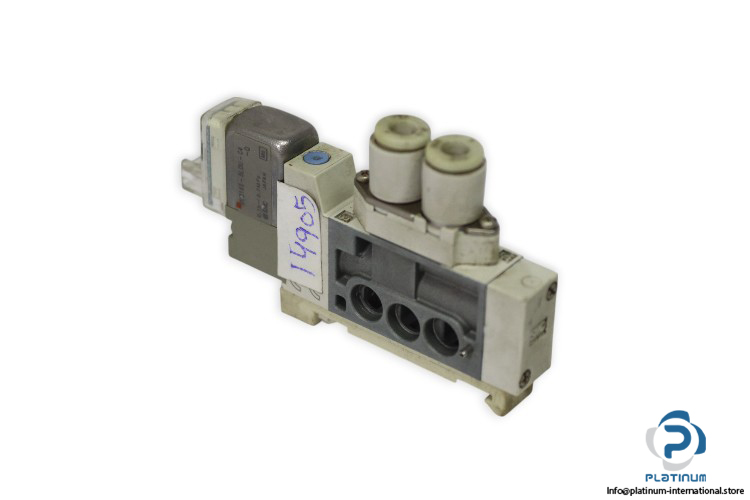

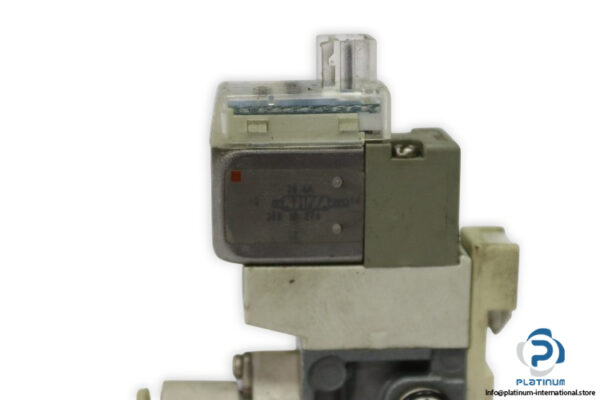

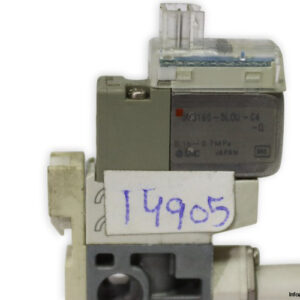

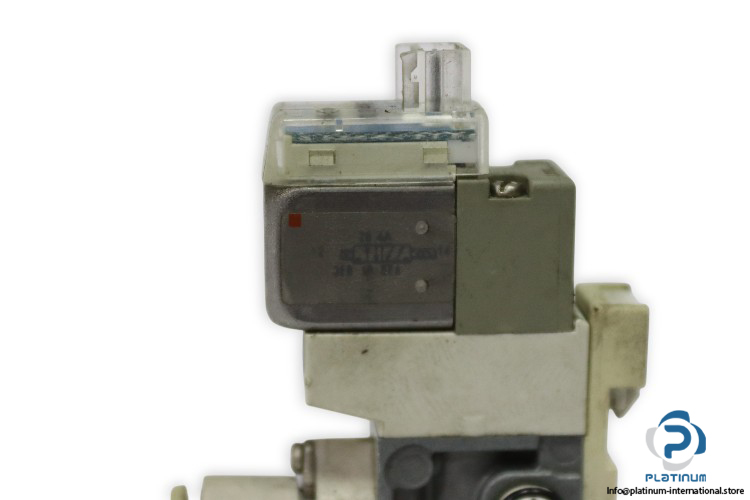

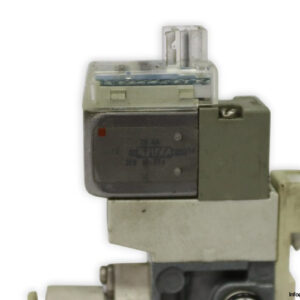

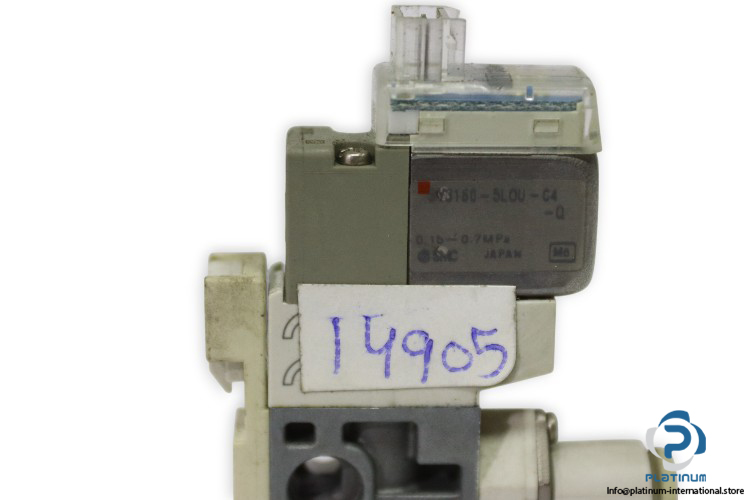

SMC SY31605LOUC4Q 5-PORT SOLENOID VALVE

Engineered for high-efficiency pneumatic systems, this compact 5-port solenoid valve from the SY3000 Series is ideal for industrial automation applications. With IP67 protection and a pressure differential self-recovery return system, it ensures reliable performance in tough environments.

• Manufacturer: SMC
• Type: 5-Port Solenoid Valve
• Model: SY31605LOUC4Q
• Series: SY3000

Technical Information

• Fluid: Air
• Actuation: Single solenoid, 2-position
• Function: 5/2 (two-position, five-port)
• Operating Pressure: 0.15 to 0.7 MPa
• Voltage: 24 V DC
• Return Type: Self-recovery via pressure differential
• Seal Material: H‘NBR (rubber)
• Ingress Protection: IP67
• Mounting Style: Cassette/manifold base
• Manual Override: Non-locking push type
• Electrical Entry: L‘plug connector (coil not included)
• Indicator & Suppressor: Light with surge suppressor (non‘polarized)
• Connection: Tube, DIN‘rail manifold ready
• Ambient/Fluid Temperature: -10 to +50¯°C
