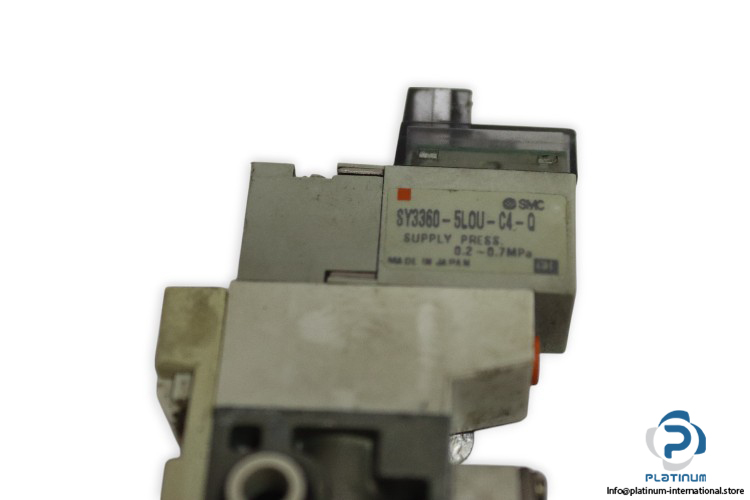

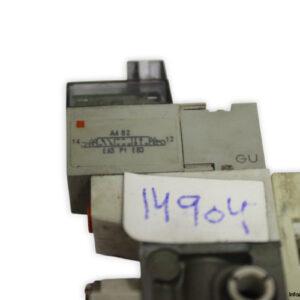

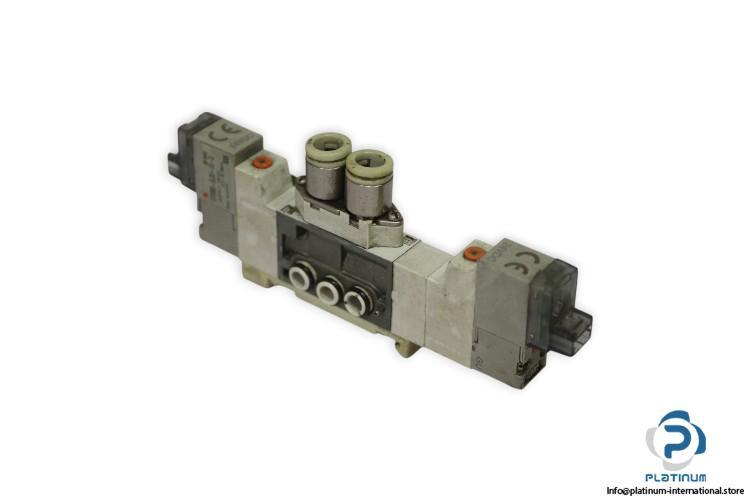

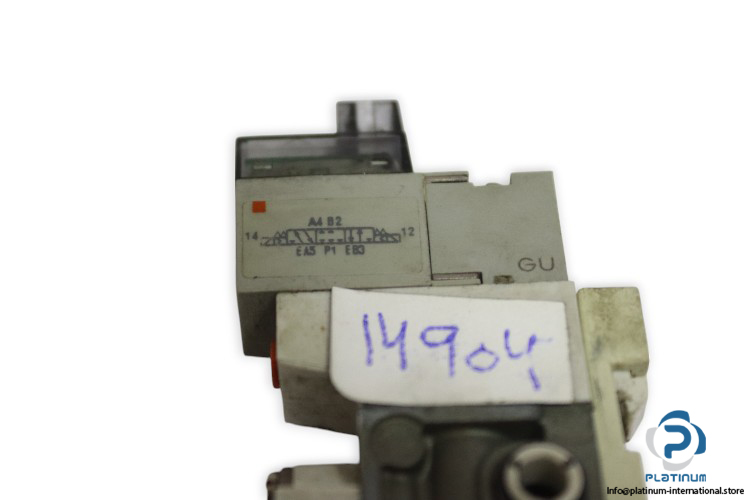

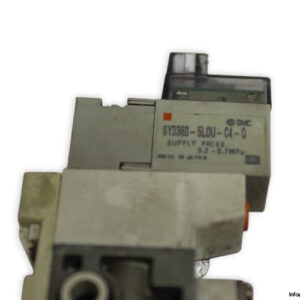

SMC SY33605LOUC4Q 5-PORT SOLENOID VALVE

Engineered for reliable pneumatic control, this SMC 5-port solenoid valve delivers efficient performance in a compact, energy-saving design. Part of the SY3000 series, it features a closed center 3-position configuration, ideal for automation and control systems operating under dynamic air pressures.

• Manufacturer: SMC
• Type: 5-Port Solenoid Valve
• Model: SY33605LOUC4Q
• Series: SY3000

Technical Information

• Fluid: Air
• Actuation: Double solenoid, spring return/self-recovery
• Control Type: Double Solenoid, 3‘Position (Closed Center)
• Coil Voltage: 24¯V DC
• Supply Pressure Range: 0.2 to 0.7 MPa
• Power: 0.1¯W (energy-saving circuit)
• Seal Type: Soft rubber (lub-free)
• Indicator Light: LED
• Ambient and Fluid Temperatures: -10 to 50 °C
• Protection Degree: IP67
• Connection: Tube, DIN‘rail manifold ready
