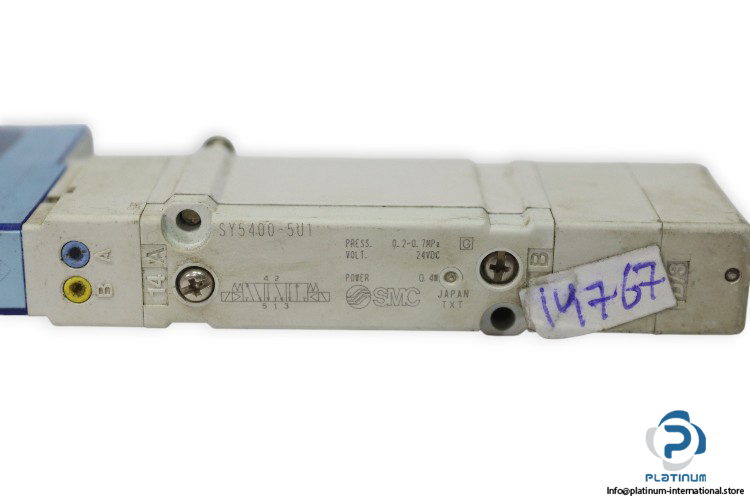

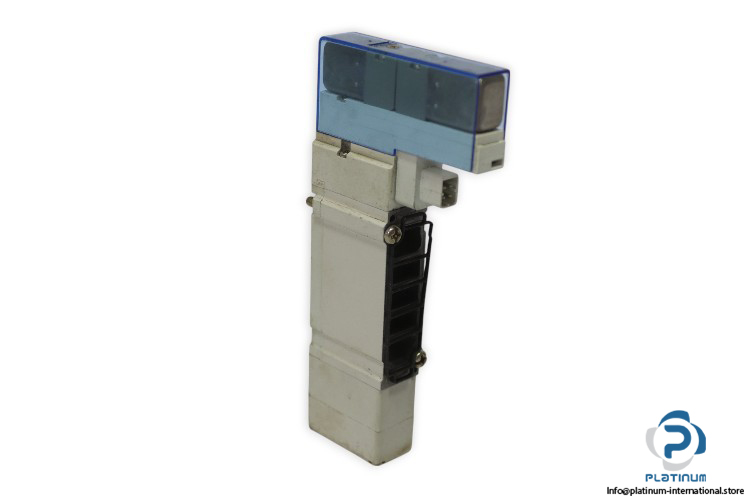

SMC SY5400-5U1 SOLENOID VALVE
The SMC SY5400-5U1 solenoid valve is engineered for precise pneumatic control in industrial systems. With a compact aluminum body and 3-position exhaust center actuation, it offers efficient flow control, low power consumption, and robust sealing ” ideal for air-based automation environments.
Manufacturer: SMC
Type: Solenoid Valve
Model: SY5400-5U1
Technical Information
- Pressure: 0.2 to 0.7 MPa
- Voltage: 24 V DC
- Current Consumption: 15 mA or less
- Power: 0.4 W
- Body Material: Aluminum
- Type of Actuation: 3-Position Exhaust Center
- Flow Rate: 6.36 CFM
- Media Type: Air
- Number of Ports: 5
- Seal Type: Rubber Seal
- Manual Override: Non-locking Push Type
- IP Rate: 40
- Ambient and Fluid Temperature: -10 to 50 °C (No freezing)
