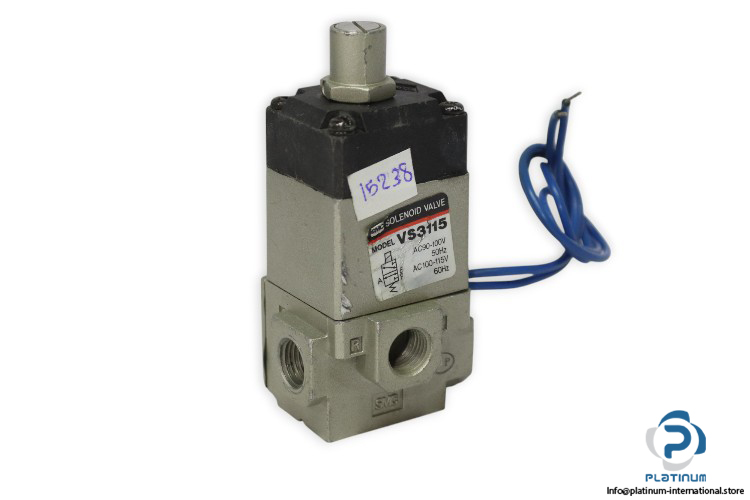

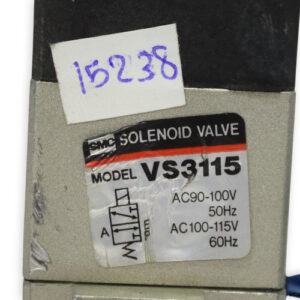

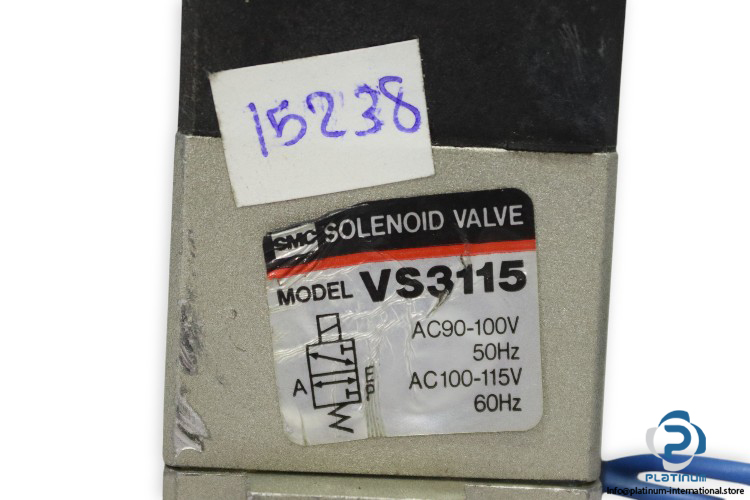

SMC VS3115 SINGLE SOLENOID VALVE

The SMC VS3115 is a high-performance single solenoid valve from the VS3 series, engineered for precision air control in industrial pneumatic systems. Its compact aluminum die-cast body and reliable metal seal ensure consistent operation under demanding conditions. Manufacturer: SMC
Type: Single Solenoid Valve
Model: VS3115
Series: VS3

Technical Information

Type of Actuation: Electrical
Ports: 3 Port direct operated
Fluid: Air
Operating Pressure: max. 1 MPa
Coil Voltage: 90 to 100 V AC, 50 Hz / 100 to 115 V AC, 60 Hz
Ambient and Fluid Temperature: -20 to 60°C
Pneumatic Connection: G1/4
Body Material: Aluminum die-casted
Seal Material: Metal
