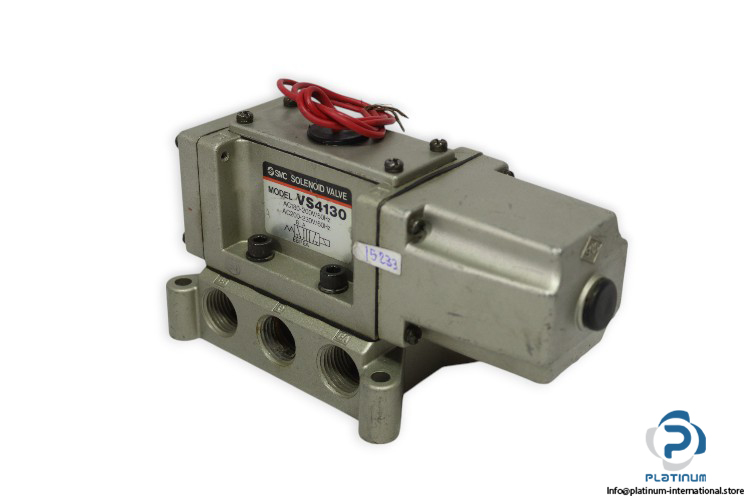

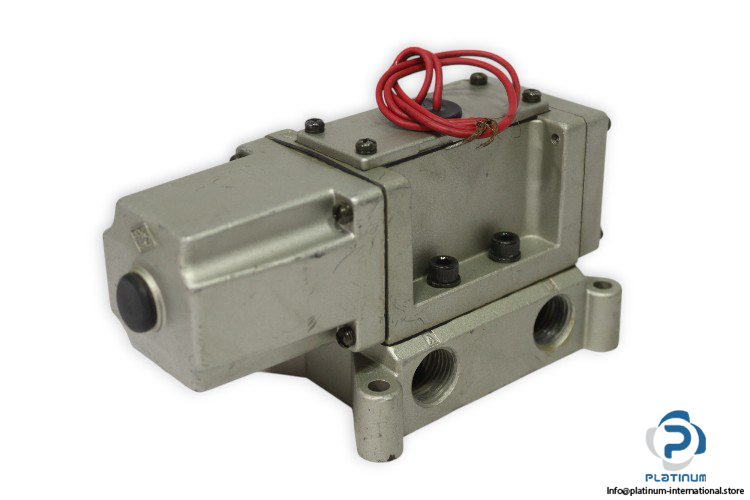

SMC VS4130 SINGLE SOLENOID VALVE WITH MANIFOLD BLOCK

The SMC VS4130 is a high-performance single solenoid valve integrated with a manifold block, engineered for reliable pneumatic control in industrial automation systems. Its compact five-port base design allows efficient mounting and airflow management in demanding environments. Manufacturer: SMC
Type: Single Solenoid Valve With Manifold Block
Model: VS4130
Series: VS4

Technical Information

Type of Actuation: Electrically
Operating Pressure: max. 1 Mpa (10 bar)
Fluid: Air
Voltage: 180 to 200 V AC, 50Hz / 200 to 230 V AC, 60Hz
Temperature Range: -20°C to +60¯°C
Pneumatic Connection: G1/2
Mounting: Five-port base (PT); manifold block
