Manufacturer: SNFA
Type: Super-precision, Hight load capacity, universally matchable single row angular contact ball bearing
Model: EX177CE1FFM
Dimensions:
Bore Diameter d: 17 mm
Outer diameter D: 35 mm
Width: 10 mm
Contact angle: 15 °
Dynamic load rating: 761 daN
Static load rating: 480 daN
Reference speed for oil lubrication: 44900 RPM
Preload: M, Medium preload
Precision class: ABEC 7
Cage material: Phenolic Resin
New
Angular Contact

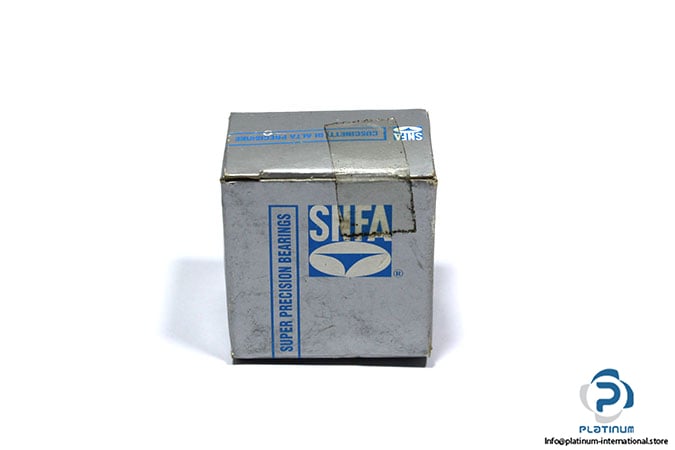

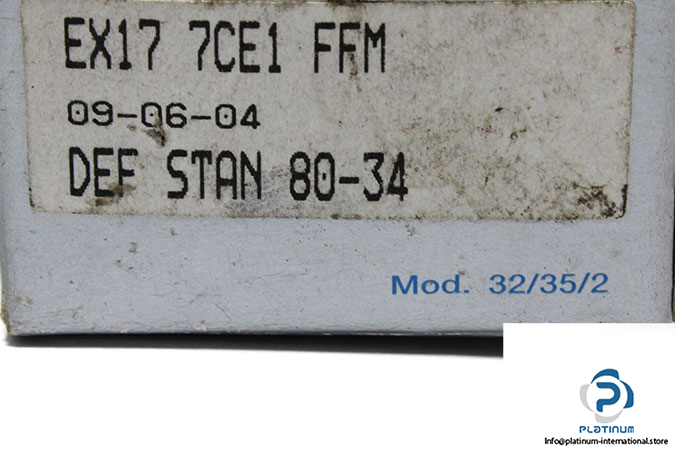

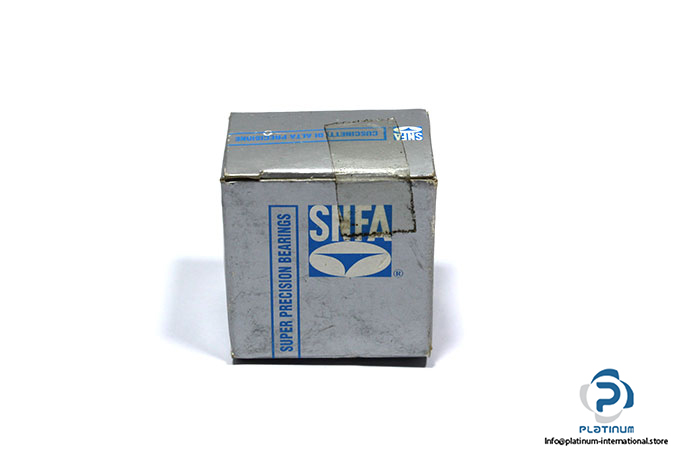

SNFA EX17 7CE1 FFM ANGULAR CONTACT BALL BEARING
In stock: 3 pcs
Very low
Hurry! Only 3 left in stock.
| Weight | 0,09 kg |
|---|---|
| Condition | |
| Model | |
| Items per Set | |
| Shelf No. |
