SNR 1307 SELF-ALIGNING BALL BEARING

Self-Aligning Ball Bearing

The SNR 1307 is a high-quality self-aligning ball bearing designed for smooth, high-speed operation and effective compensation for misalignment. Features a 35 mm bore and 80 mm outer diameter, with oil speed up to 9500 RPM.

SKU: 1075988 Category: Tags: , , , , , , , , , , , ,
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
Add to quote

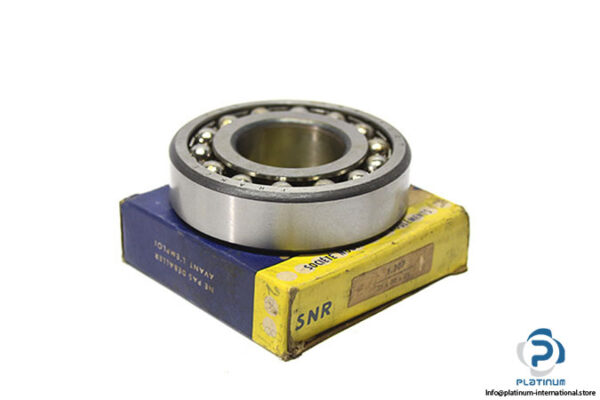

SNR 1307 Self-Aligning Ball Bearing

The SNR 1307 Self-Aligning Ball Bearing is designed to accommodate misalignment and shaft deflections in demanding applications. It provides smooth operation, high-speed capability, and long service life in both oil and grease-lubricated environments.

Manufacturer: SNR

Type: Self-Aligning Ball Bearing

Model: 1307

Technical Information:

  • Bore Diameter (d): 35 mm
  • Outer Diameter (D): 80 mm
  • Width (B): 21 mm
  • Dynamic Load Rating: 25,300 N
  • Static Load Rating: 7,850 N
  • Limiting Speed “ Oil: 9500 RPM
  • Limiting Speed “ Grease: 7500 RPM
Weight0,5 kg
