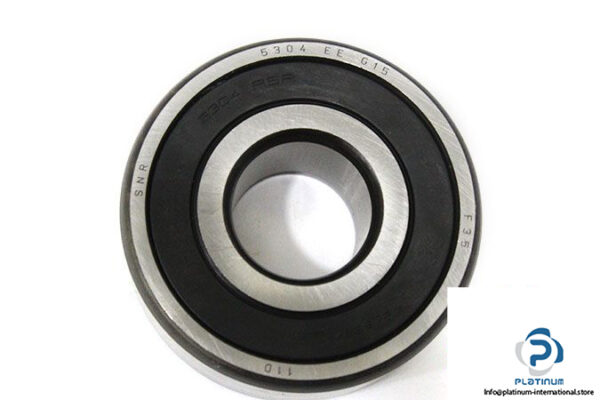

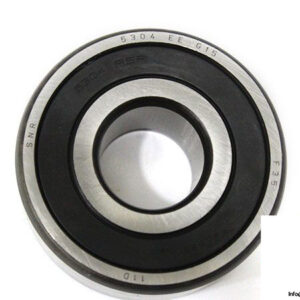

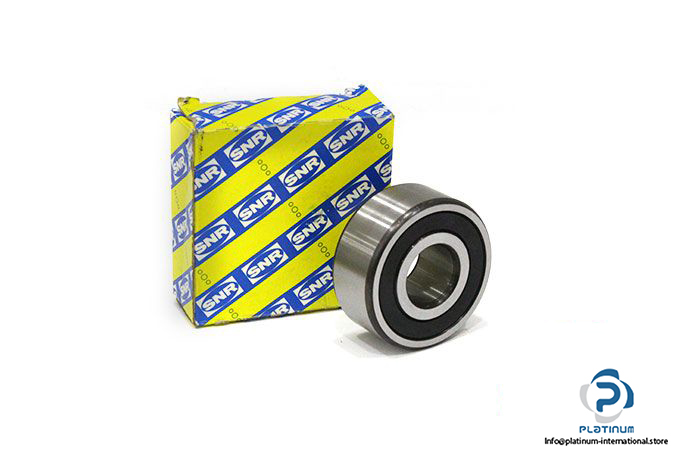

Manufacturer: SNR

Type: Double row angular contact ball bearing

Model: 5304EEG15

Part No: 5304

Bore Diameter: 20 mm

Outer diameter: 52 mm

Width: 22.2 mm

Contact Angle: 25 °

Basic load ratings:

Dynamic C_r: 22.2 kN

Static C_0r: 14.6 kN

Fatigue Limit Load: 0.92 kN

Limiting speed: 9800 rpm

Cage: G15; Polyamide 6.6 cage with glass fibers

Seal: Contact seal on one side

Weight: 0.2 kg
