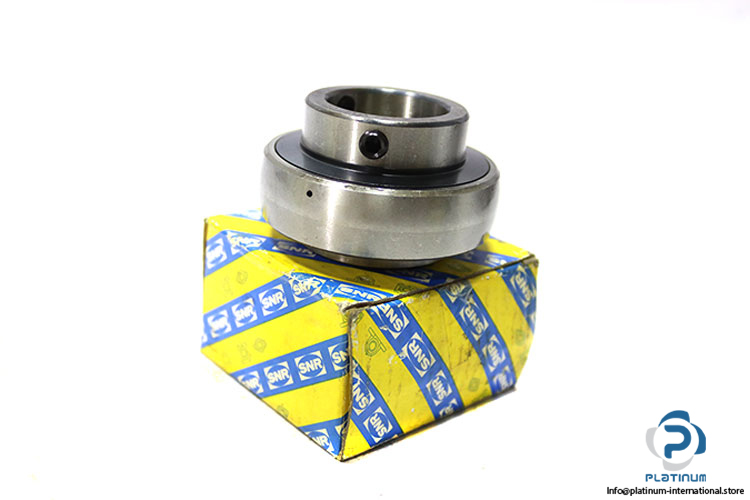

SNR UC.207.G2 INSERT BALL BEARING
The SNR UC.207.G2 insert ball bearing is built for heavy-duty use in rotating equipment, combining high load capacity with precision G2 quality class. Ideal for industrial assemblies where both dynamic and static strength are essential.
Manufacturer: SNR
Type: Insert Ball Bearing
Model: UC.207.G2
Technical Information
- Bore Diameter (d): 35 mm
- Outer Diameter (D): 72 mm
- Width of Inner Ring (B): 42.9 mm
- Width of Outer Ring (C): 20 mm
- Set Screw Size: M8x1
- Dynamic Load Rating (C): 25.7 kN
- Static Load Rating (C0): 15.2 kN
- Quality Class: G2
