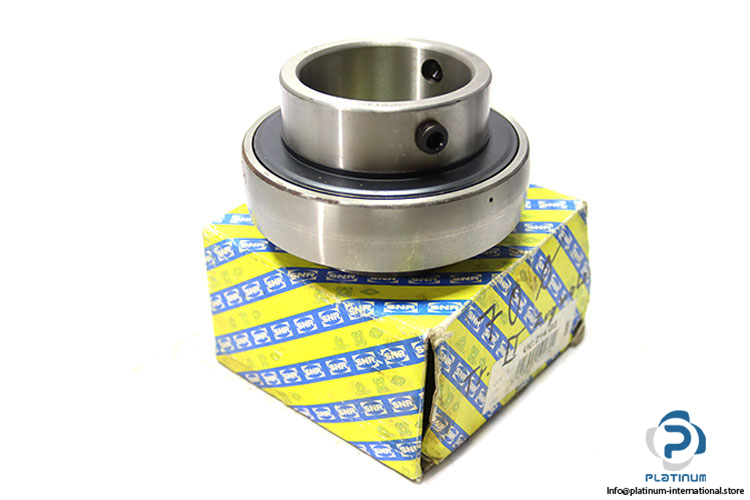

SNR UC.214.G2 INSERT BALL BEARING
The SNR UC.214.G2 insert ball bearing is engineered for demanding applications that require high load capacity and precision. With a 70 mm bore diameter and solid construction, it offers dependable performance in industrial machinery and mechanical systems.
Manufacturer: SNR
Type: Insert Ball Bearing
Model: UC.214.G2
Technical Information
- Bore Diameter d: 70 mm
- Outer Diameter D: 125 mm
- Width of Inner Ring B: 74.6 mm
- Width of Outer Ring C: 30 mm
- Set Screw Size: M12x1.25
- Basic Load Rating (Dynamic) C: 62 kN
- Basic Load Rating (Static) C0: 45 kN
- Quality Class: G2
