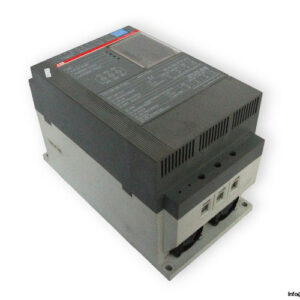

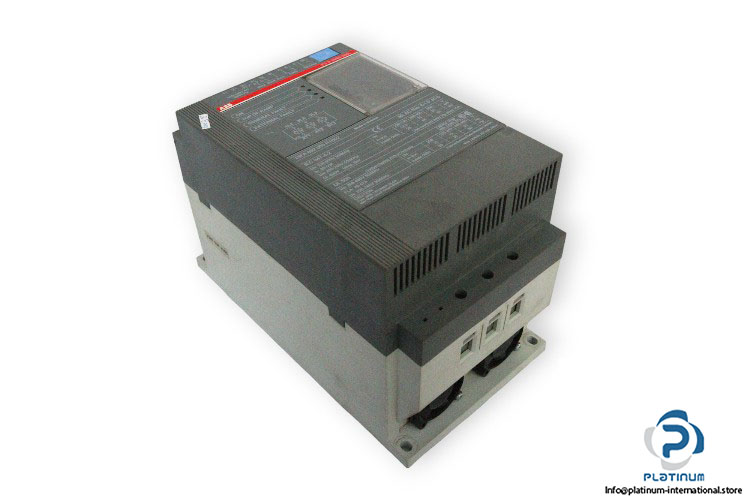

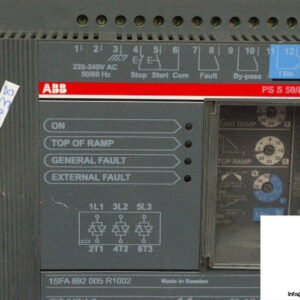

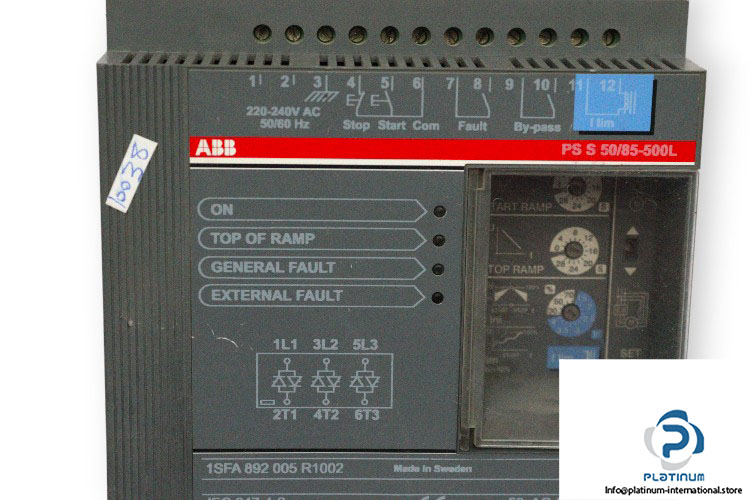

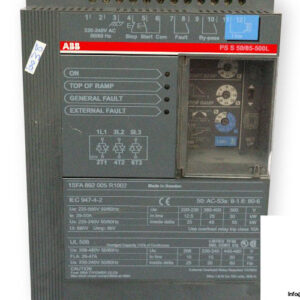

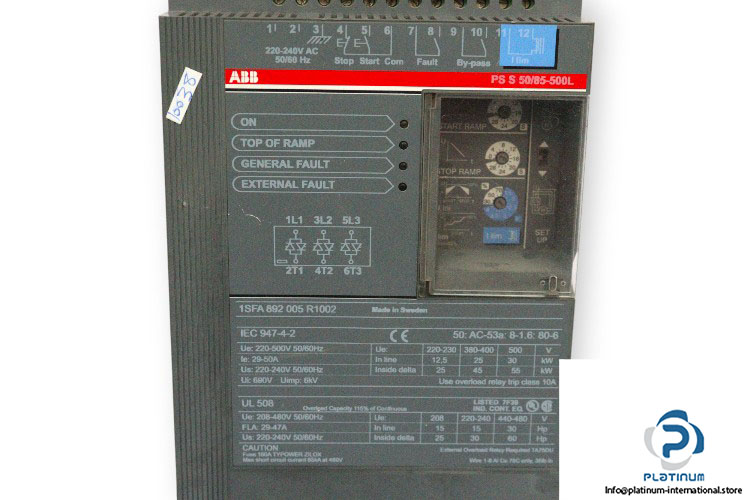

Manufacture: Abb
Type: Soft Starter
Model: PSS5085500L
Product No.: 1SFA 892 005 R1002

Rated Control Circuit Voltage Uc: 24 V DC
Rated Control Supply Voltage Us: 220 … 240 V AC
Rated Frequency: 50/60 Hz
Rated Operational Current – In-Line Connection (Ie): 50 A
Rated Operational Current – Inside Delta Connection: 85 A
Power Consumption: 10 W
In-Line Motor power: 12.5 kW(220 … 230V) … 30 kW (500 V)
Inside Delta Motor power: 25 kW(220 … 230V) … 55 kW (500 V)
Power Loss: 160 W
Current Range: 18 … 50 A
Contact: Normally open
Ramp Time: 0 … 30 second [unit of time]/1 … 30 second [unit of time]
Terminal Type: Screw Terminals
Type of Start: normal
Degree of Protection: IP10
Ambient Operation Temperature: -25 … +60 °C
Dimensions: 162 x 250 x 140 mm
