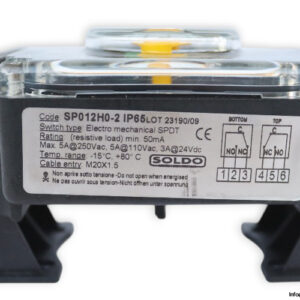

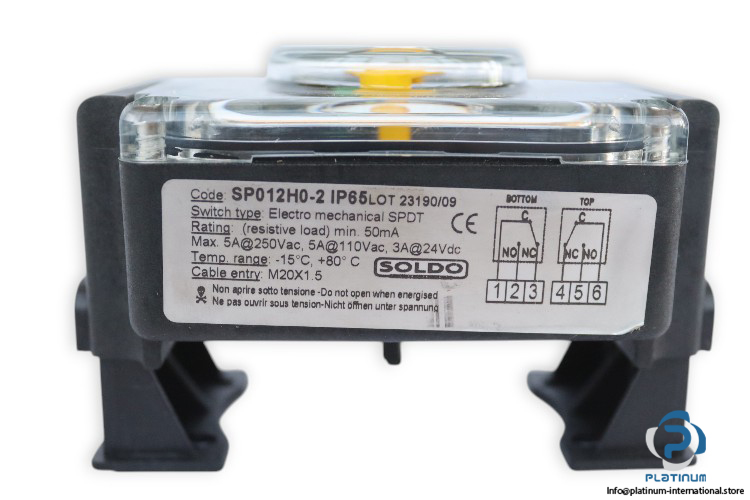

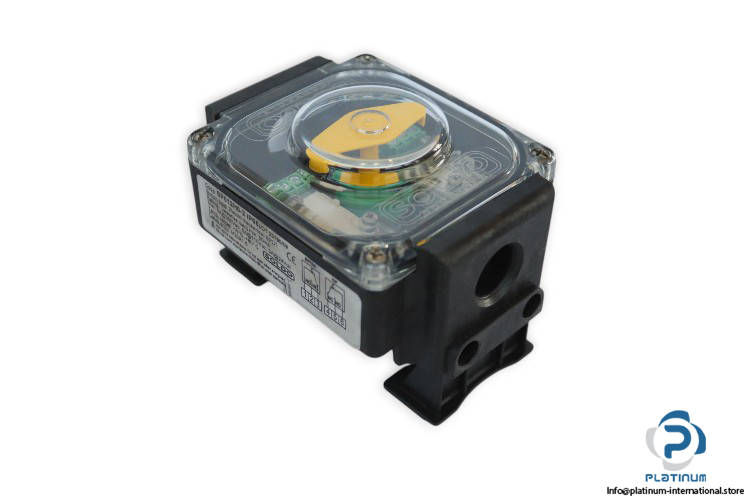

Soldo SP012H0-2 Rotary Switch Box / Limit Switch Box
The Soldo SP012H0-2 is a high-quality rotary switch box engineered for precise position feedback, reliable switching performance, and long-term durability in industrial valve automation. Designed for harsh environments, it features robust construction, high protection rating, and advanced mechanical components that ensure accurate and consistent operation. This unit provides an ideal solution for monitoring valve position in process plants, water treatment facilities, chemical industries, and general automation systems.
Manufacturer: Soldo
Type: Rotary Switch Box / Limit Switch Box
Model: SP012H0-2
Series: SP
LOT. No.: 23190/09
Technical Information
- Switch Type: 2 SPDT electromechanical switches, silver plated contacts
- Electrical rating: max. 5A@250VAC, 5A@110VAC, 3A@24VDC / min. 50mA@24VDC (resistive load)
- Ambient temperature range: -15°C to +80°C
- Protection degree: IP65
Features
- visual position indicator
- reinforced techno polymer body, shaft and bracket
- shock resistant and UV resistant polycarbonate cover
- complete with adjustable mounting bracket suitable to fit directly on VDI/VDE 3845 actuators
- 1 cable entry M20x1.5
- independent tool free adjustable high resolution splined cams
- pre-wired PCB terminal strip
