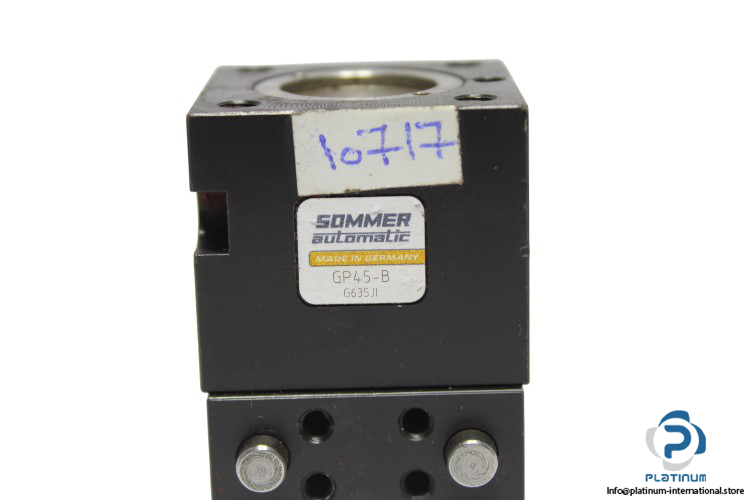

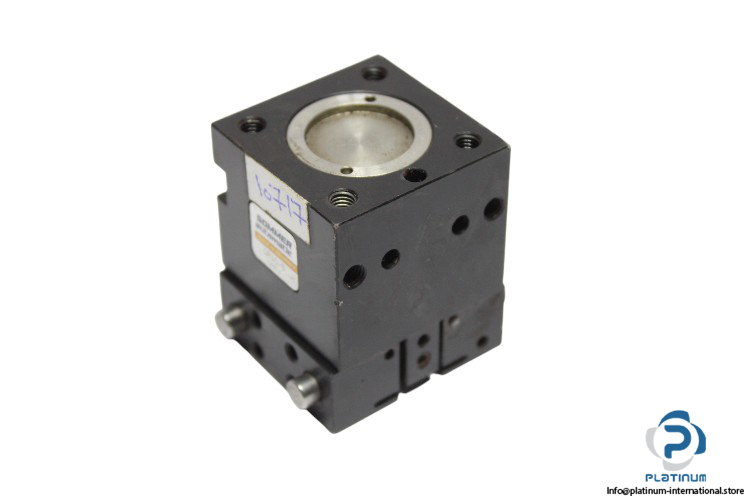

SOMMER AUTOMATIC 2-Jaw Parallel Gripper GP45-B

The SOMMER AUTOMATIC 2-Jaw Parallel Gripper GP45B is designed for efficient and precise handling of components in automated systems. With a stroke of 5 mm per jaw, this gripper provides accurate and reliable gripping in pneumatic applications. The gripper operates within a pressure range of 5 to 8 bar, generating a close gripper force of 190 N. Constructed from durable aluminium, it ensures long-lasting performance. The pneumatic connection size is 5 mm, and it operates in a temperature range of 5 to 80°C, making it suitable for a wide range of industrial environments.

Manufacturer: SOMMER AUTOMATIC

Type: 2-Jaw Parallel Gripper

Model: GP45-B

Technical Specifications

• Fluid: Air
• Stroke Per Jaw: 5 mm
• Operating Pressure: 5 / 8 bar
• Gripper Force Close: 190 N
• Material: Aluminium
• Pneumatic Connection: 5 mm
• Temperature: 5 / 80 °C
