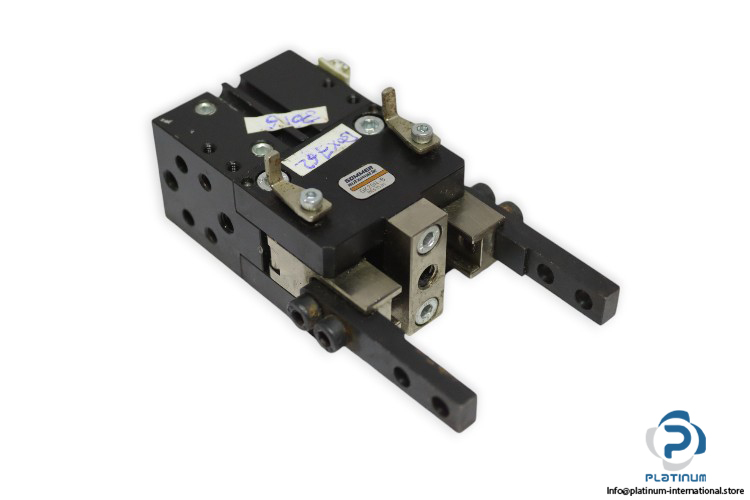

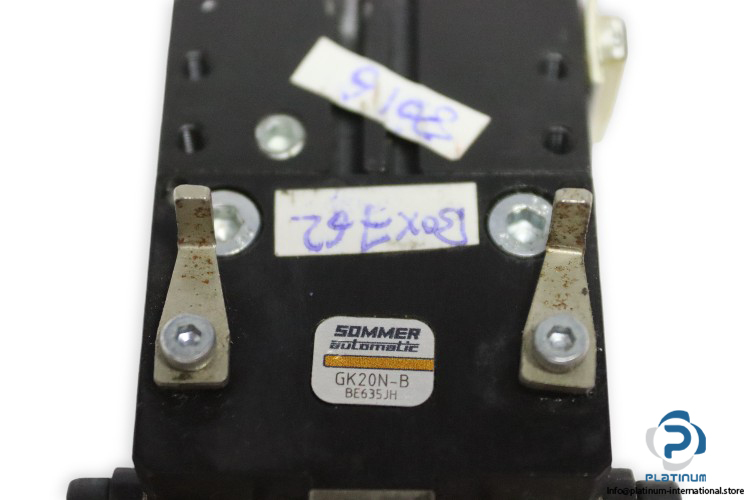

Manufacturer: SOMMER
Type: 2-jaw radial gripper
Model: GK20N-B

Stroke per jaw: 90 °
Gripping moment in closing: 3 Nm
Gripping force in closing: 150 N
Closing time: 0.1 s
Opening time: 0.1 s
Repetition accuracy: +/- 0.05 mm
Operating pressure min.: 3 bar
Operating pressure max.: 8 bar
Nominal operating pressure: 6 bar
Operating temperature min.: 5 °C
Operating temperature max. : +80 °C
Air volume per cycle: 9 cm³
Protection: IP20
Connection: 5 mm
