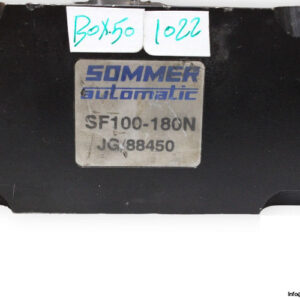

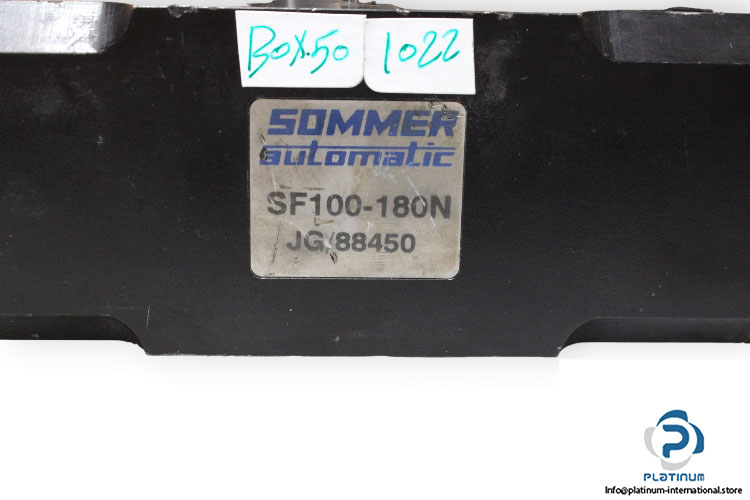

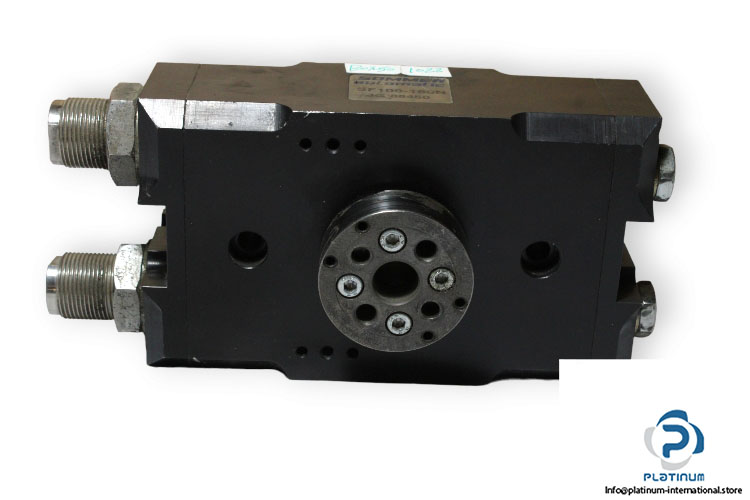

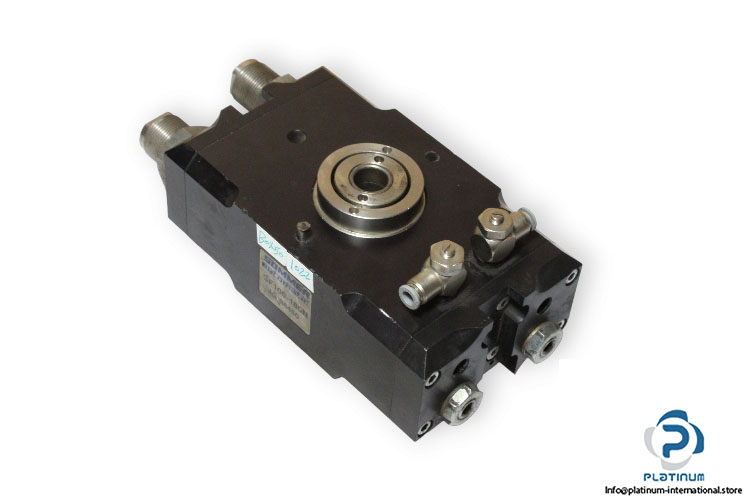

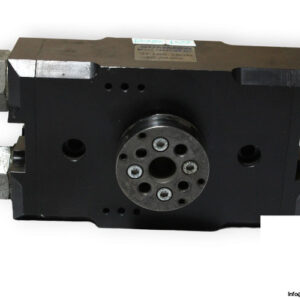

Manufacturer: SOMMER
Type: Flat Swivel Unit
Model: SF100-180N
Part No.: JG/88450
Operating Pressure: 3 … 8 bar
swivel angle: 180°
Torque: 20 NM
Pivoting angle adjustable: 3°
Through Hole: 15 mm
Bearing load axial: 2500 N
Bearing load Radial: 155 NM
Ambient Temperature: 5 … 80°C
Cylinder volume per cycle: 206 CC
