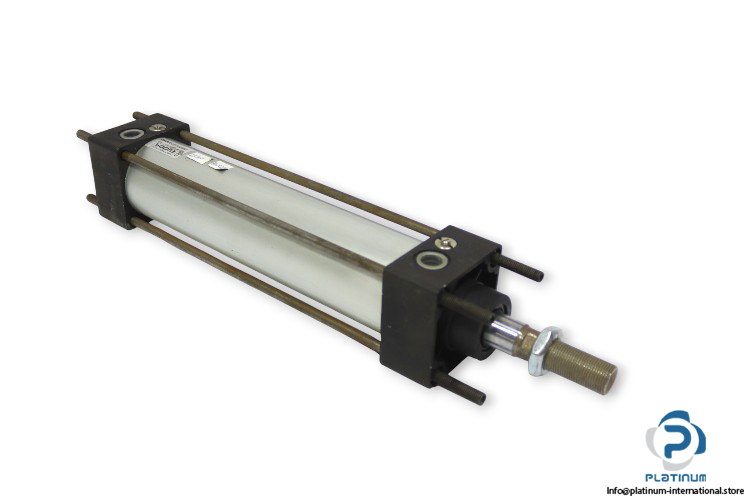

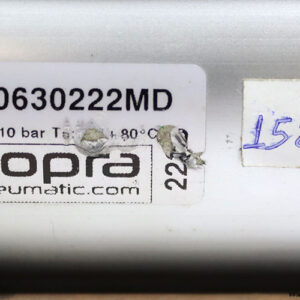

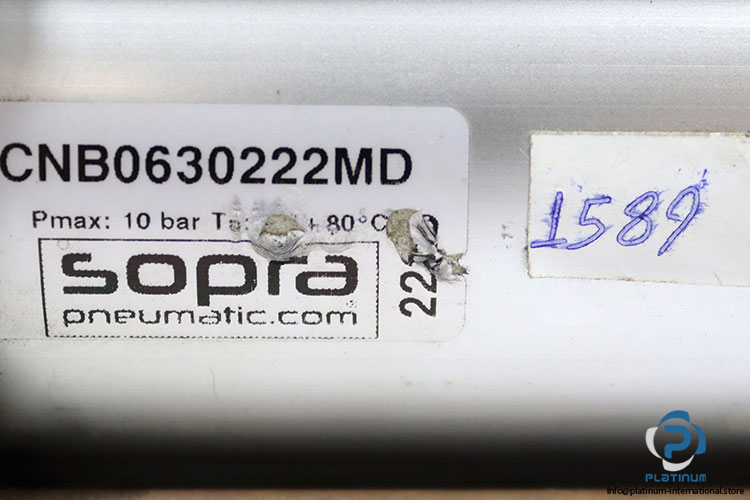

SOPRA CNB0630222MD Pneumatic Cylinder
The SOPRA CNB0630222MD Pneumatic Cylinder is engineered for reliable motion control and durability in industrial automation systems. It delivers smooth linear movement, high performance, and resistance to demanding operating conditions.
Manufacturer: SOPRA
Type: Pneumatic Cylinder
Model: CNB0630222MD
Technical Information
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 222 mm
- Bore x Stroke: 63 x 222 mm
- Rod Diameter: 22 mm
- Frame Dimensions: 75 x 370 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
- Max Temperature: 80 °C
