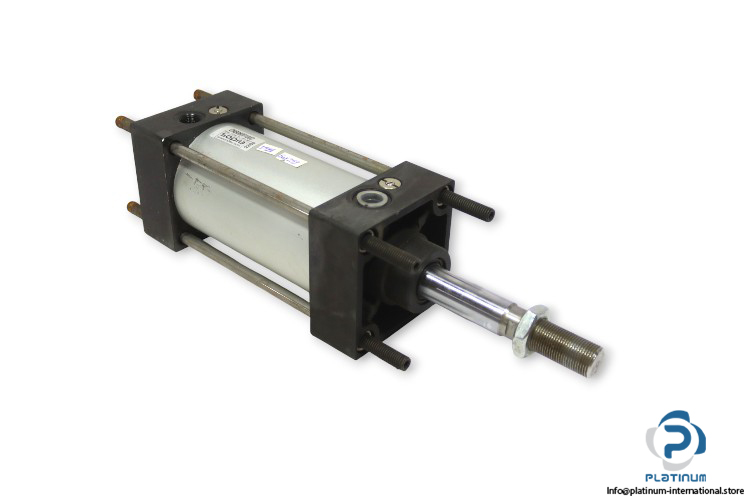

SOPRA CNB0800100D Pneumatic Cylinder
The SOPRA CNB0800100D Pneumatic Cylinder is built for precise and reliable motion control in industrial automation systems. It provides smooth double-acting operation with a durable square frame design and high performance under pressures up to 10 bar.
Manufacturer: SOPRA
Type: Pneumatic Cylinder

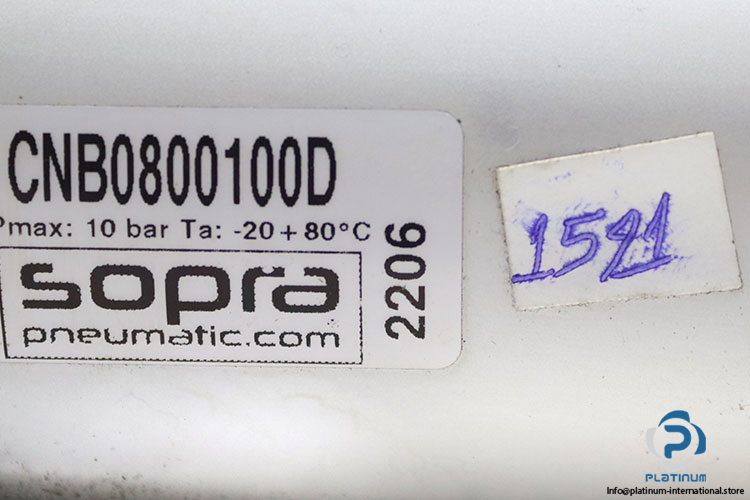

Model: CNB0800100D
Ref No.: 2206
Technical Information
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 100 mm
- Bore x Stroke: 80 x 100 mm
- Rod Diameter: 22 mm
- Frame Dimensions: 95 x 250 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
- Temperature Range: -20 to 80 °C
