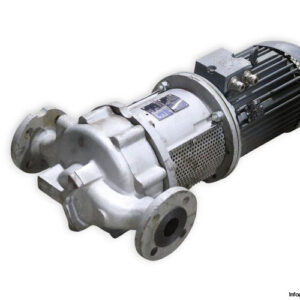

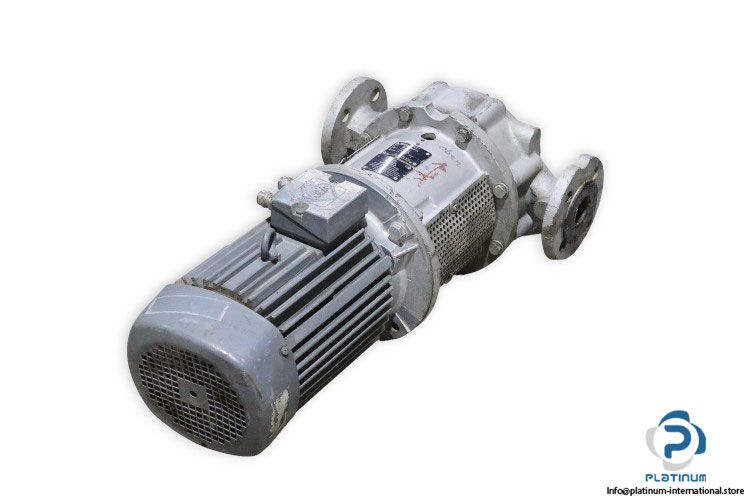

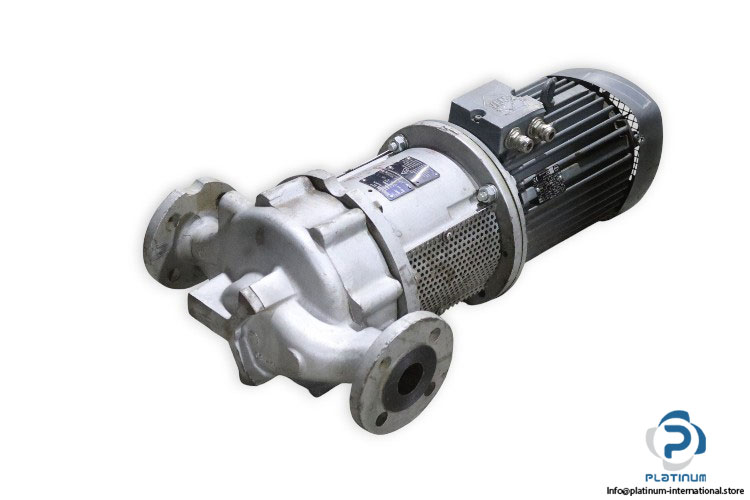

SPECK PUMPEN INA-40-180.0013B Centrifugal Pump

The SPECK PUMPEN INA-40-180.0013B is a high-performance centrifugal pump designed for efficient fluid transfer in industrial systems. Built with precision engineering and powered by a VEM K21R 112 MX 2 motor, it delivers exceptional reliability, flow rate, and durability for demanding applications.

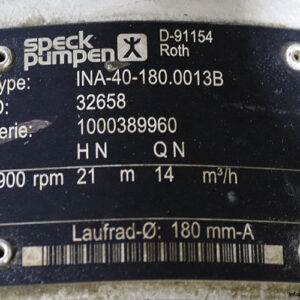

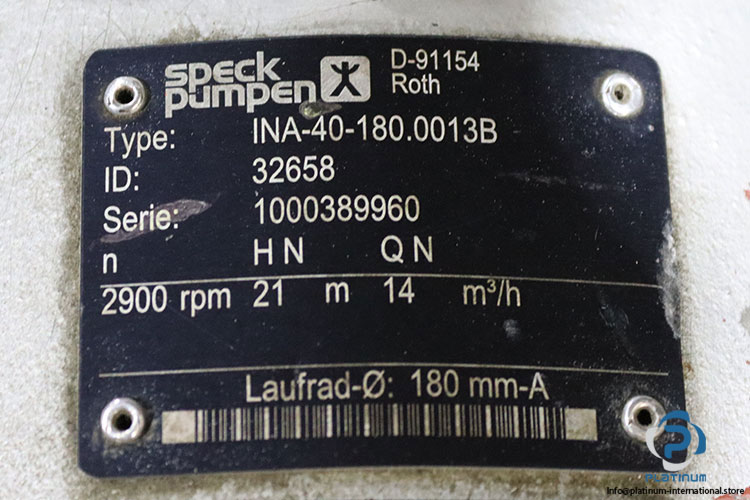

Manufacturer: SPECK PUMPEN
Type: Centrifugal Pump
Model: INA-40-180.0013B
ID No.: 32658
Serial No.: 1000389960

Technical Information

• Maximum Capacity: 14 m³/h
• Maximum Delivery Head (H): 21 m
• Impeller Diameter: 180 mm-A
• Nominal Motor Speed: 2900 rpm

Motor Information

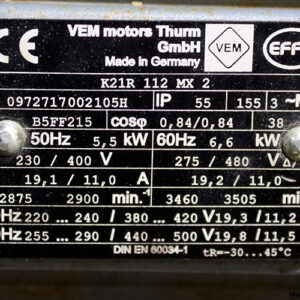

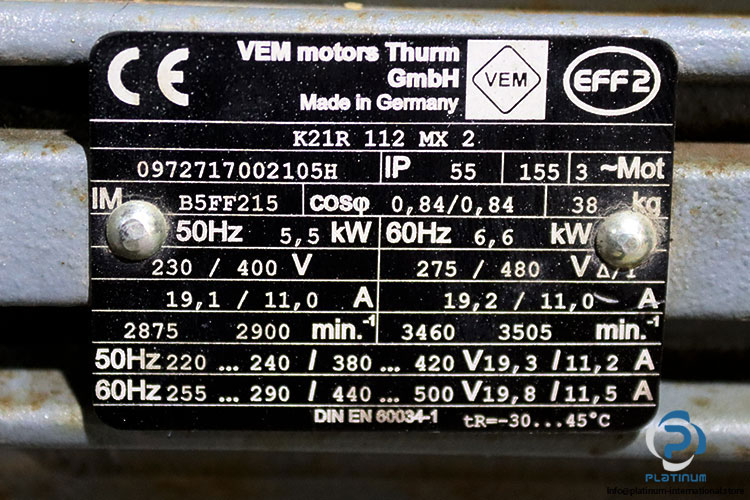

• Attachment: VEM K21R 112 MX 2 Motor
• Manufacturer: VEM Motors Thurm GmbH “ Germany
• Model: K21R 112 MX 2
• Type: Motor
• Serial Number: 0972717002105H
• Mounting: IM B5 FF215
• Efficiency Class: EFF2
• Voltage Rating @ 50 Hz: 230 / 400 V
• Current: 19.1 / 11.0 A Δ/Î¥
• Power Rating: 5.5 kW
• Speed (rpm): 2875 “ 2900
• Voltage Rating @ 60 Hz: 275 / 480 V Δ/Î¥
• Current: 19.2 / 11.2 A Δ/Î¥
• Power Rating: 6.6 kW
• Speed: 3460 “ 3505 rpm
• Power Factor: 0.84
• Protection Class: IP55
• Insulation Class: F
• Standards: DIN EN 60034-1
• Ambient Temperature: ˆ’30 / +45 °C
