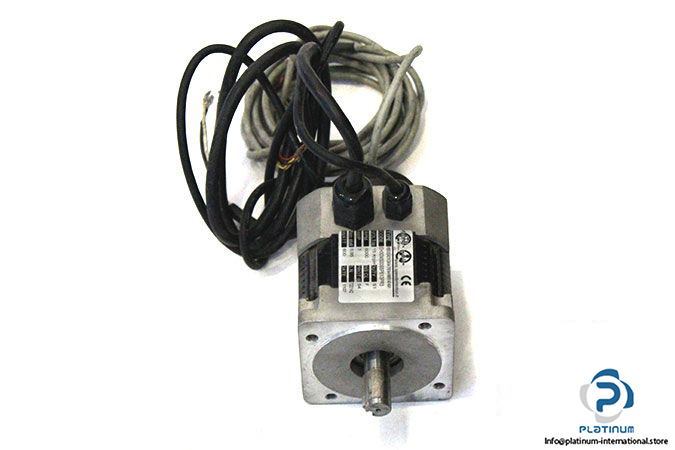

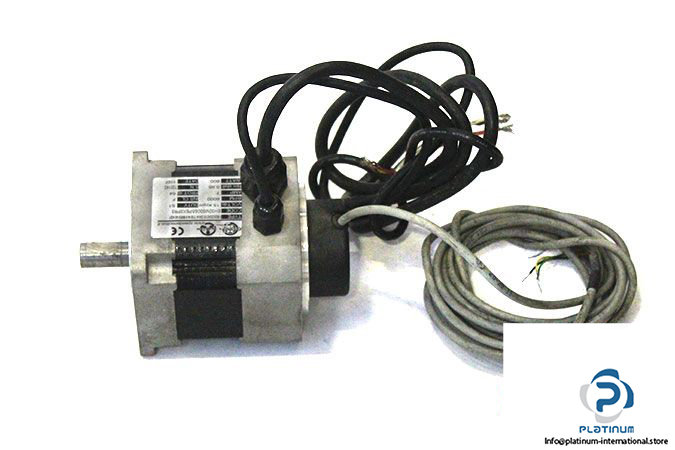

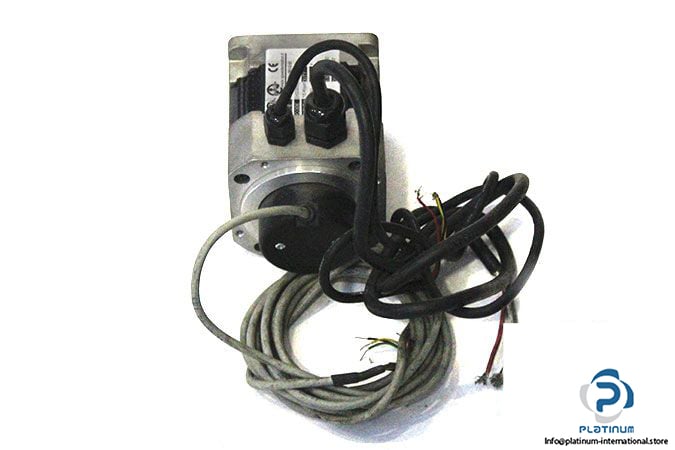

Speeder Motion MB082GA210DA1471B14-MNRV40 40/1 DC Brushless Servo Motor

The Speeder Motion MB082GA210DA1471B14-MNRV40 40/1 is a high-performance DC brushless servo motor engineered for precision motion control applications. With a powerful 600W output, a high-speed rating of 6000 min»¹, and robust IP54 protection, this motor is ideal for industrial automation and robotics.

Manufacturer: Speeder Motion

Type: DC Brushless Servo Motor

Model: MB082GA210DA1471B14-MNRV40 40/1

Code: EH30M500S5P6X3PR3

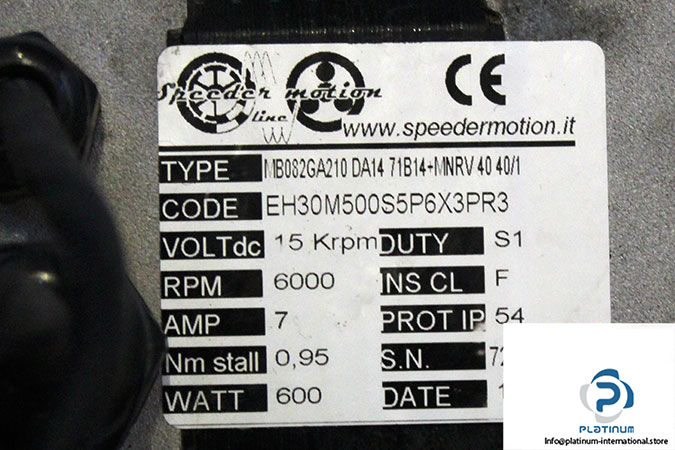

Technical Data:

• Voltage: 15 VDC
• Current: 7 A
• Speed: 6000 min»¹
• Power: 600 W
• Stall Torque: 0.95 Nm
• Duty: S1 (Continuous Operation)
• Insulation Class: F
• Protection Class: IP54
