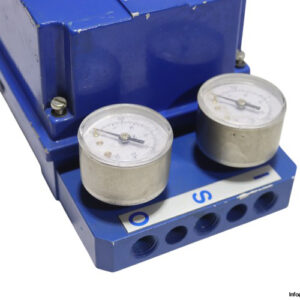

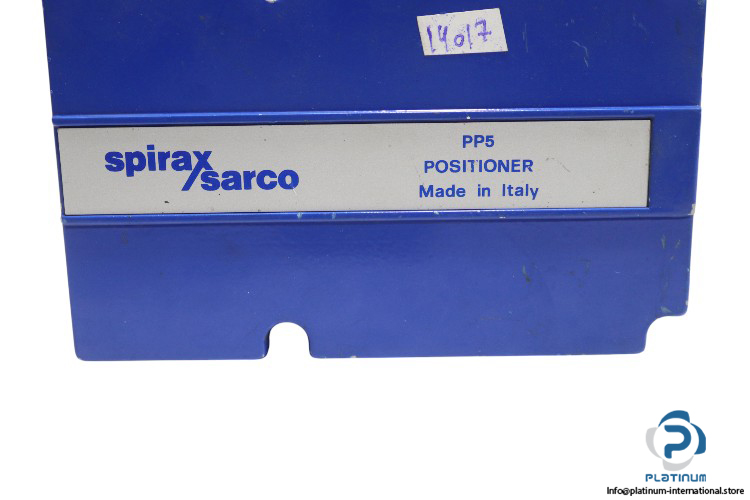

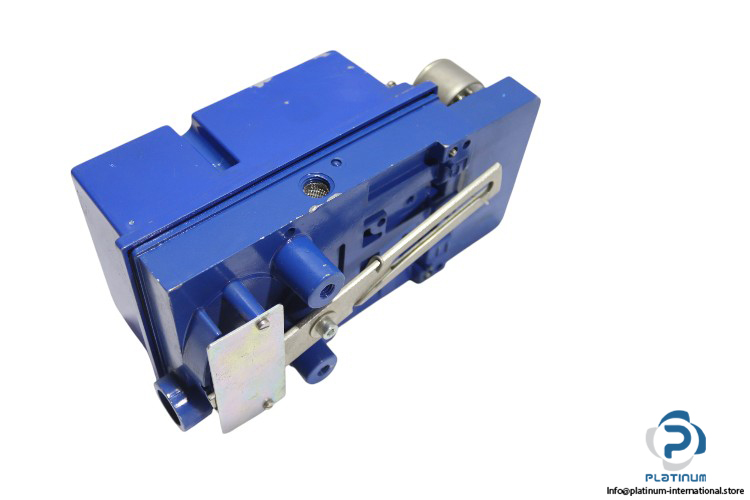

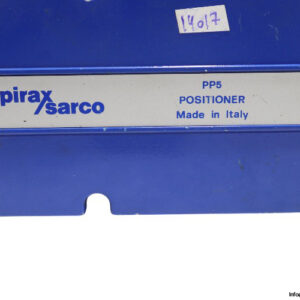

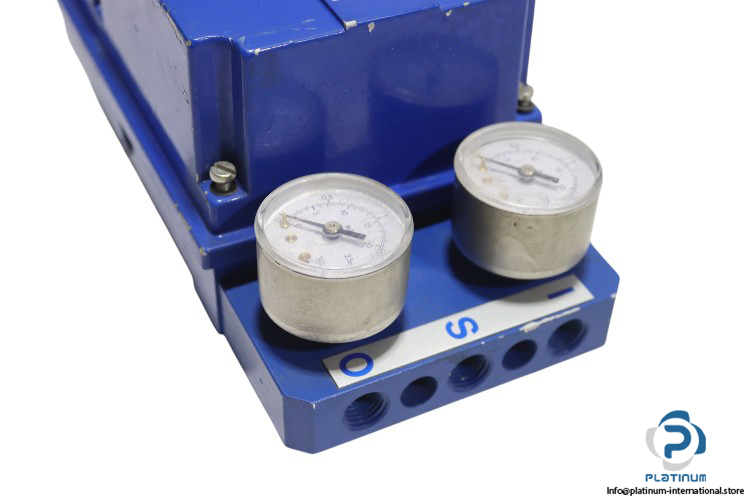

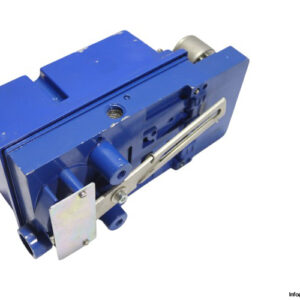

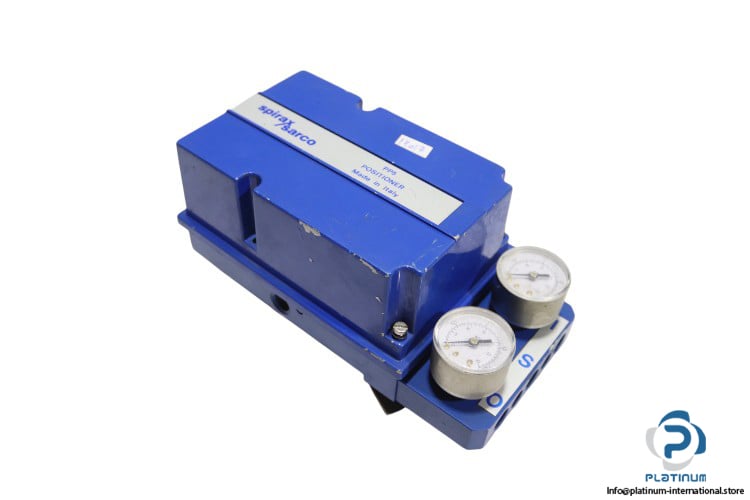

Spirax Sarco Pneumatic Positioner PP5
The Spirax Sarco PP5 Pneumatic Positioner is designed for precise control and regulation in pneumatic systems. It offers adjustable amplification and a wide range of stroke options, ensuring versatility and performance in demanding industrial environments.
Manufacturer: Spirax Sarco
Model: PP5
Type: Pneumatic Positioner
Technical Information:
- Inlet Control Signal: 0.2 to 1 bar
- Outlet Loading Signal: 0.2 to 1 bar or 0.4 to 2 bar
- Air Consumption: 0.2 Nm3/h (supply at 1.4 bar) “ 0.7 Nm3/h (supply at 6 bar)
- Maximum Air Flow: 3.5 Nm3/h
- Ambient Temperature Effect: Maximum +80°C, Minimum -20°C
- Stroke Range: 10 to 100 mm
- Amplification: Adjustable
- Pneumatic Connection: 1/8 inch
- Protection Class: IP65
- Material Base Plate and Cover: Die cast aluminum with anti-corrosive paint
