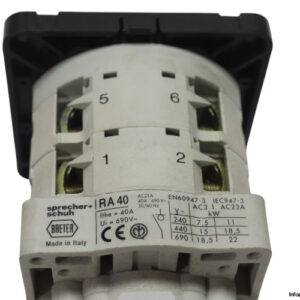

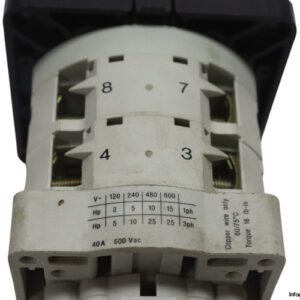

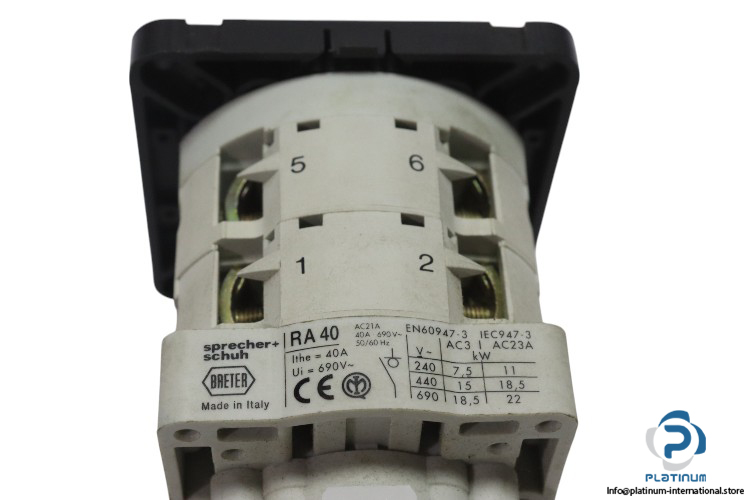

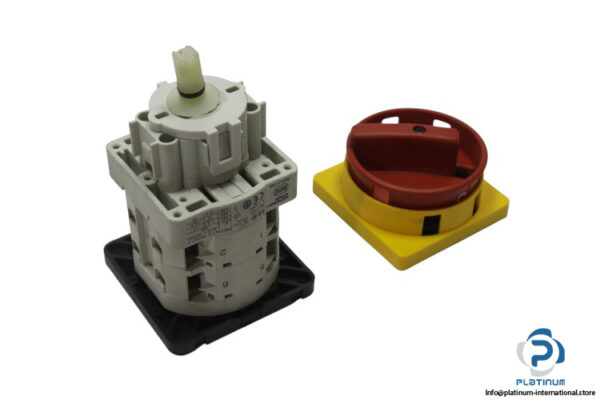

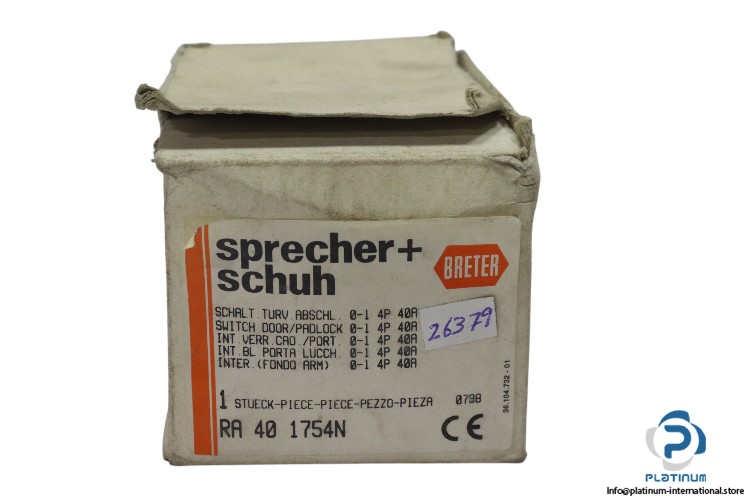

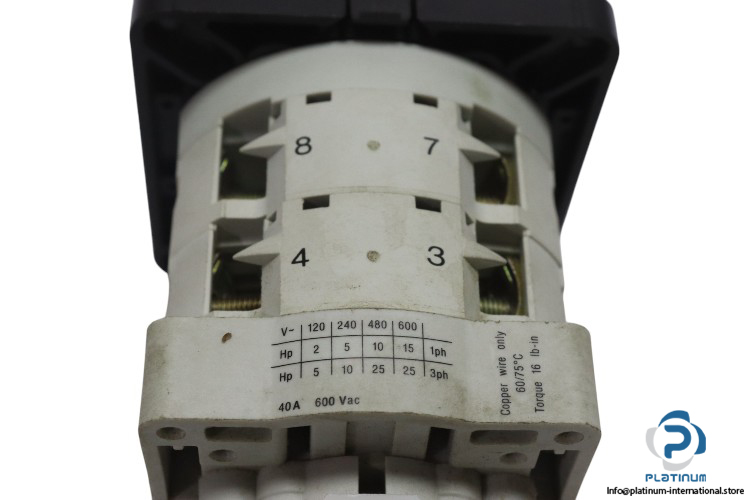

Sprecher+Schuh / BRETER RA401754N “ Rotary CAM Switch with Handle

The Sprecher+Schuh RA401754N rotary CAM switch offers versatile switching control with a 90-degree rotation, designed for base mounting in industrial systems. With a thermal current rating of 40 A and high switching capacity, this switch meets IEC 947-3 and EN 60947-3 standards for reliable performance across various applications.

• Manufacturer: Sprecher+Schuh / BRETER
• Type: Rotary CAM Switch with Handle
• Model: RA401754N
• Series: R-Line

Technical Information:

• Switch Angle: 90 degrees
• Poles/Switch Wafers: 4/2
• Switching Angle: 0-1 (90 degrees)
• Mounting: Base Mounted
• Thermal Current Ith: 40 A
• Rated Insulation Voltage Ui: 690 V AC
• Switching Rating AC21A: 690 V AC, 40 A
• Frequency: 50/60 Hz
• Standard: IEC 947-3, EN 60947-3
• Power Consumption AC3/AC23A:
  • 7.5/11 kW (240 V AC)
  • 15/18.5 kW (440 V AC)
  • 18.5/22 kW (690 V AC)
• Operating Temperature: -25 to 60°C
