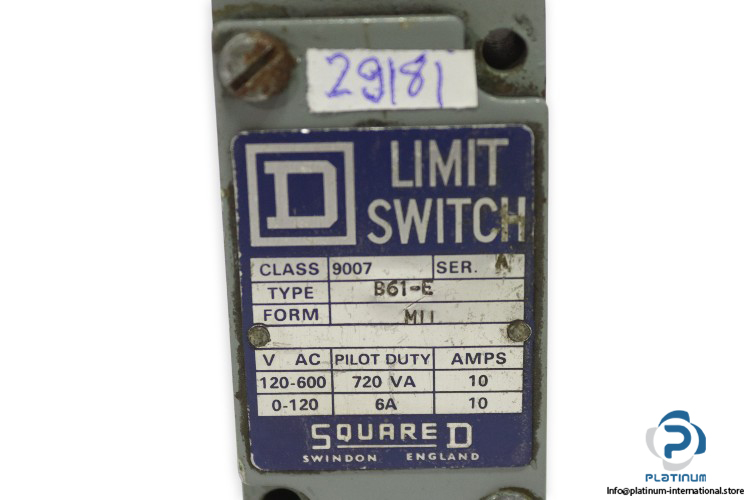

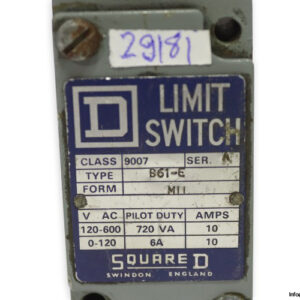

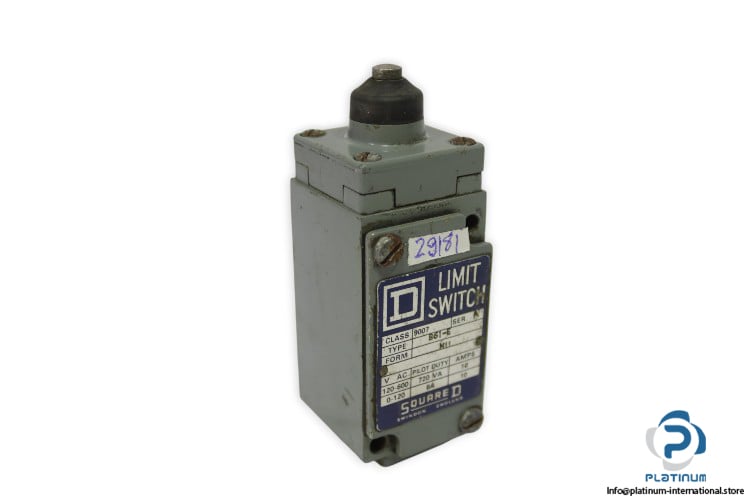

SQUARE D B61-E Limit Switch
The SQUARED B61E is a robust industrial limit switch designed for accurate position sensing and reliable operation. With a cast zinc body, IP66 protection, and top pin plunger actuator, it ensures durability and performance in demanding environments.
Manufacturer: SQUARE D
Type: Limit Switch
Model: B61-E
Technical Information
- Rated Voltage: 120 / 600 V AC
- Rated Current: 10 A
- Power Consumption: 720 VA
- Actuator Type: Top Pin Plunger, Side Mount with Boot Seat
- Body Material: Cast Zinc
- Protection Class: IP66
