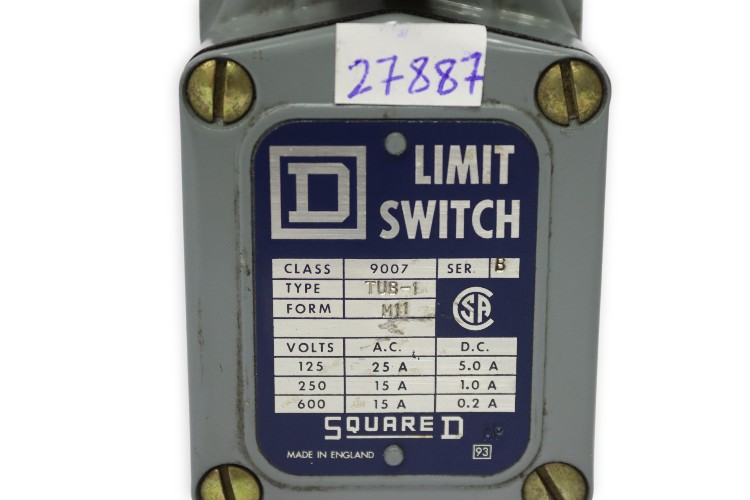

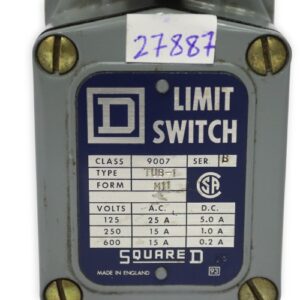

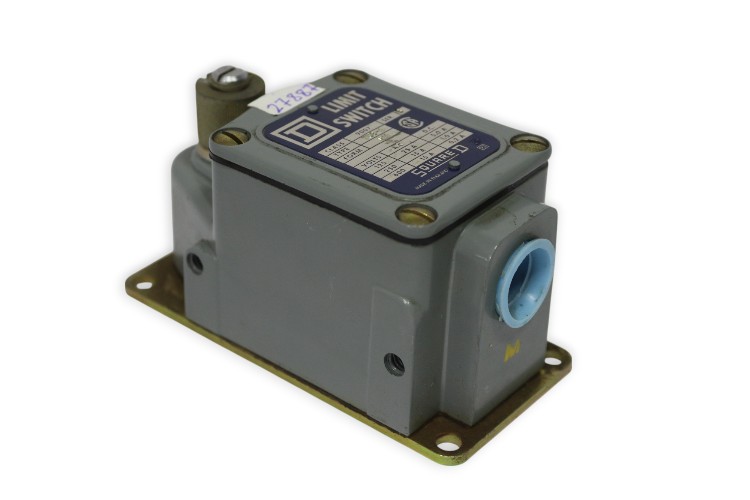

SQUARE D TUB-1 Limit Switch

The SQUARED TUB-1 is a robust limit switch engineered for industrial applications requiring reliability and precision. With a durable cast zinc body and IP66 protection, it is designed to withstand harsh environments while ensuring safe and accurate operation.

Manufacturer: SQUARE D
Type: Limit Switch
Model: TUB-1

Technical Information

• Voltage Max.: 600 V AC/DC
• Contact Configuration: SPDT (1 NO, 1 NC)
• Electrical Ratings:
  • 125V: 25A (AC), 5A (DC)
  • 250V: 15A (AC), 1A (DC)
  • 600V: 15A (AC), 0.2A (DC)
• Material: Cast zinc
• Protection Class: IP66
