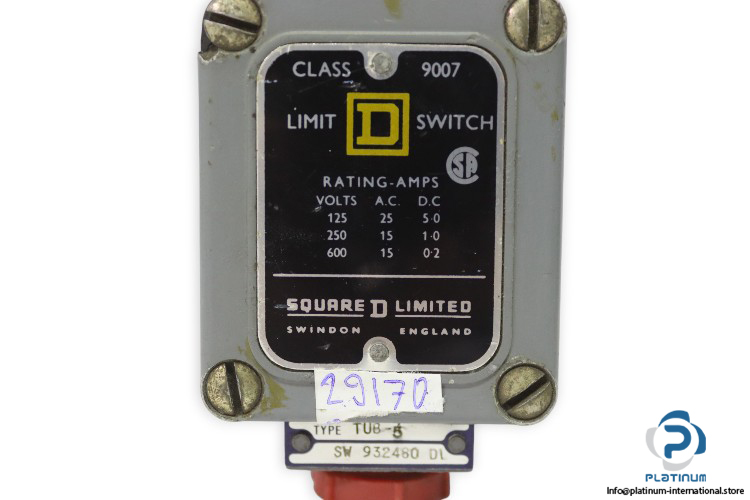

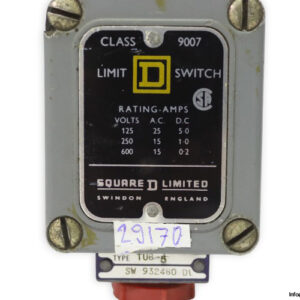

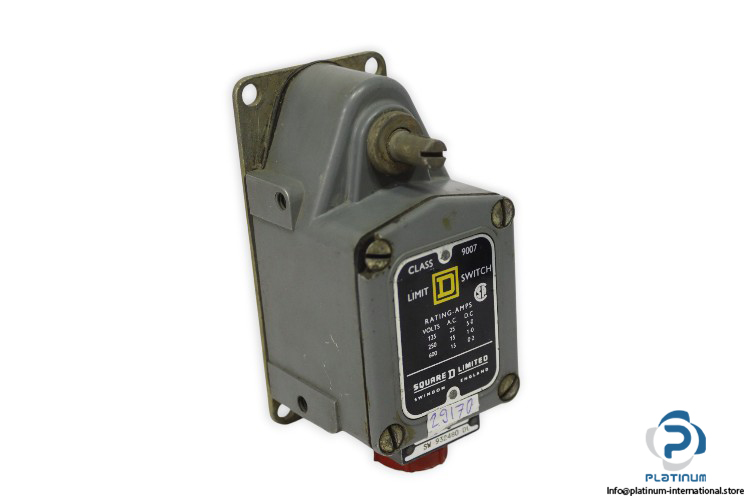

SQUARE D TUB-5 Limit Switch

The SQUARED TUB5 Limit Switch is a durable and reliable industrial switching device designed to handle demanding electrical applications. With a robust cast zinc body and IP66 protection, it ensures long-lasting performance even in harsh environments.

Manufacturer: SQUARE D
Type: Limit Switch
Model: TUB-5 9007
Part No.: SW 932460 01

Technical Information

• Rated Voltage Max.: 600 V AC/DC
• Rated Current: 20 A
• Contact Configuration: AC SPST / DC SPDT
• Electrical Ratings:
  • 125 VAC: 25 A (AC), 5.0 A (DC)
  • 250 VAC: 15 A (AC), 1.0 A (DC)
  • 600 VAC: 15 A (AC), 0.2 A (DC)
• Body Material: Cast Zinc
• Protection Class: IP66
