Manufacturer: TRANSLINK

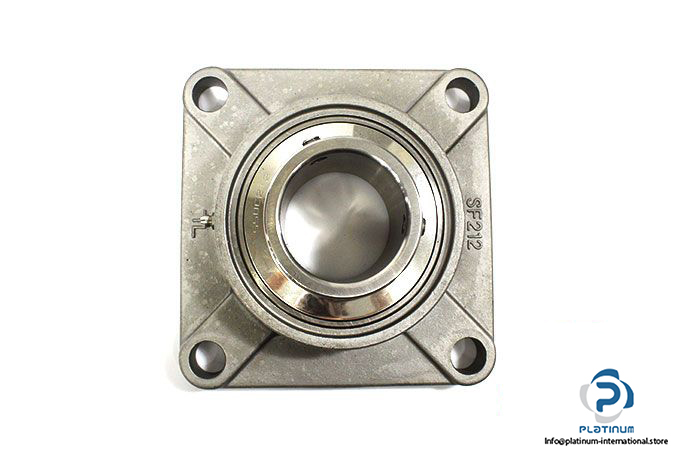

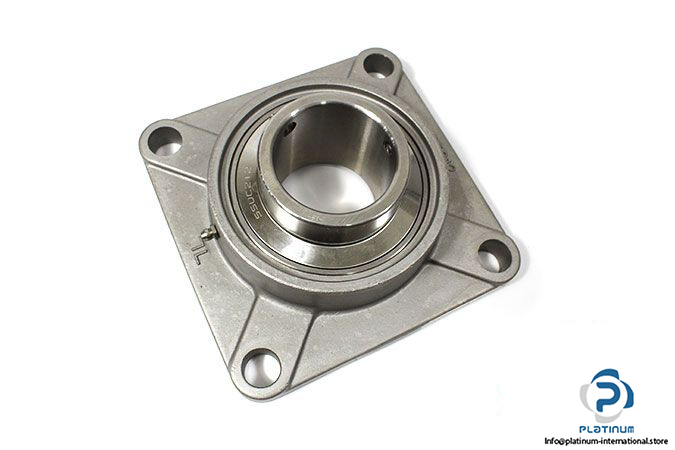

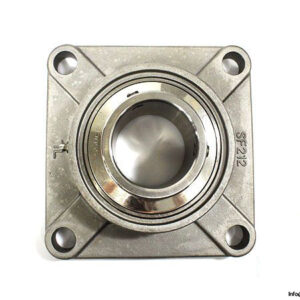

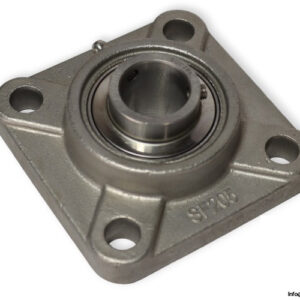

Type:  FOUR-BOLT SQUARE FLANGE UNIT

Series: UCF

Part No.: UCF 212-SUS

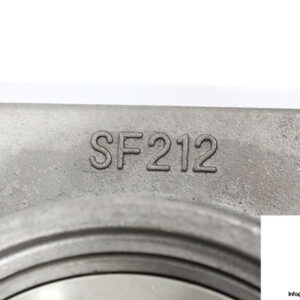

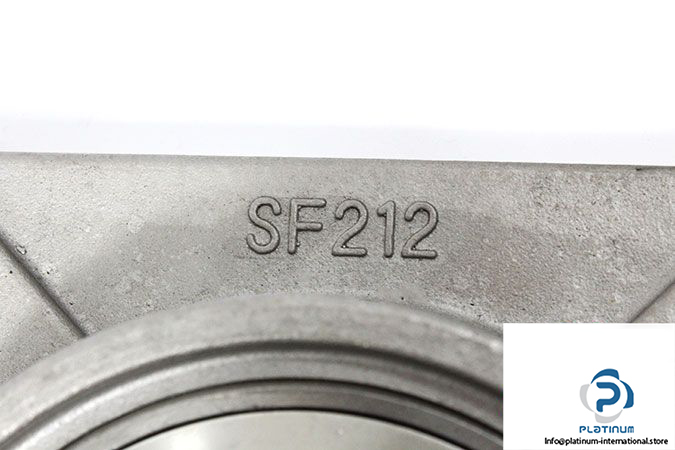

Housing No.: SF212

Bearing No.: UC212

Features:

• The stainless pillow blocks and stainless bearings–also incorporated into the plastic pillow blocks –are made of AISI 440C and AISI 420 quality stainless steel.
• All the pillow block products include full self-alignment of the bearing, hollow set-screws, steel plate slinger for effective expulsion of dust, contact type seal on both sides of the bearing and grease fitting.

Housing material: Stainless Steel

Bore type: Round

Mounting: Four-Bolt Flange

Locking device: Set Screw

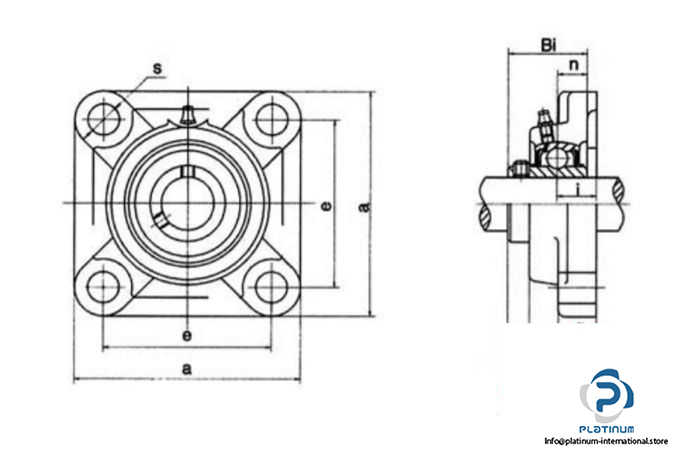

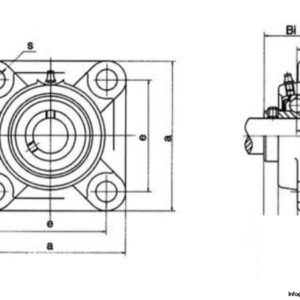

Bore Diameter ( d ): 60 mm

Overall length ( a ): 175 mm

Overall Width ( e ): 143 mm

Overall Height: 74.2 mm

thread size ( s ): 19 mm

Weight: 4.14 kg
