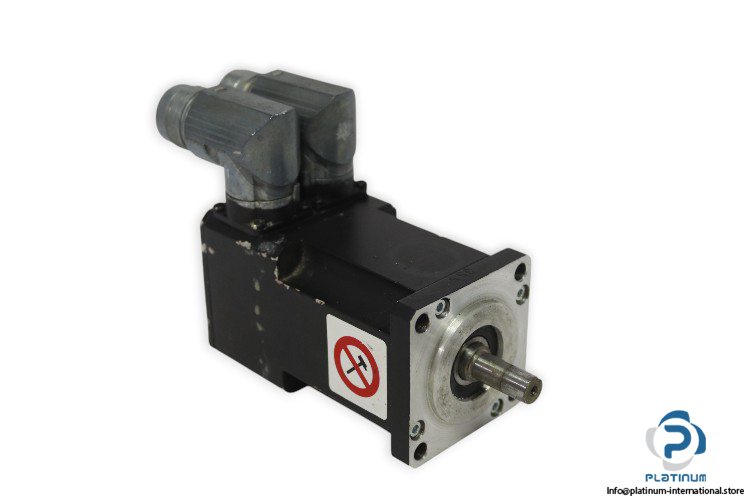

SSD AC M2N 0010-4/0-3 AC Servomotor
The SSD AC M2N 0010-4/0-3 is a compact and efficient AC servomotor designed for precision motion control. With continuous duty operation, integrated thermal protection, and resolver feedback, it offers reliable performance across demanding automation applications.
Manufacturer: SSD
Type: AC Servomotor
Model: AC M2N 0010-4/0-3

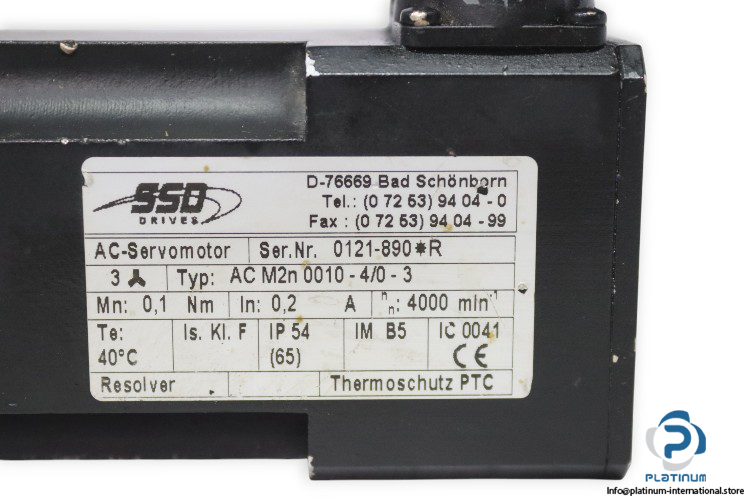

Serial No.: 0121-890*R
Technical information
- Rated Torque (Mn): 0.1 Nm
- Current: 0.2 A
- Speed: 4000 min»¹ (rpm)
- Duty: Continuous (S1)
- Ambient Temperature: 40 °C
- Insulation Class: F
- Protection Class: IP54 (up to IP65)
- Mounting: IM B5
- Cooling Method: IC0041
- Position Feedback: Resolver
- Protection: Thermoschutz PTC (thermal protection)
