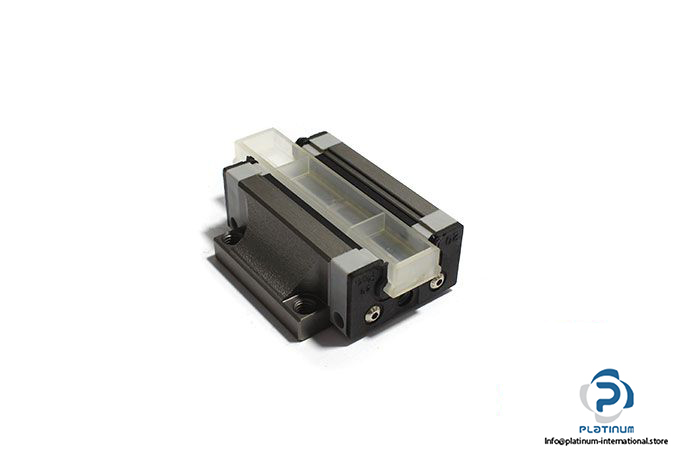

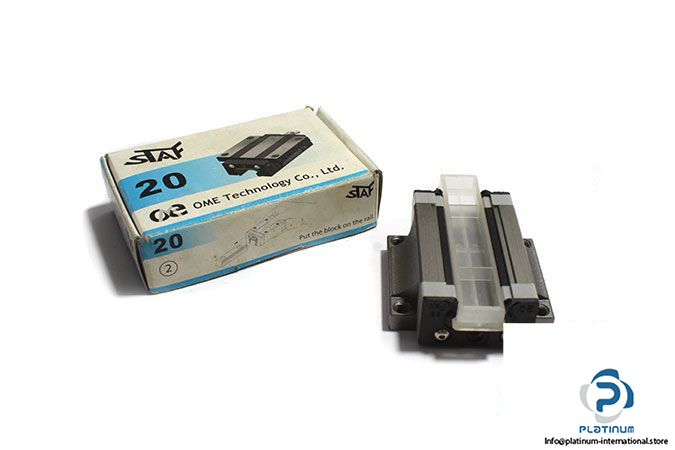

Manufacturer:  STAF

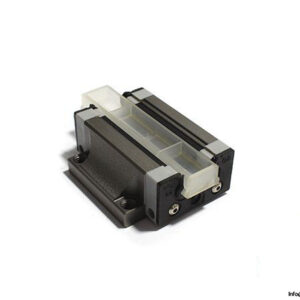

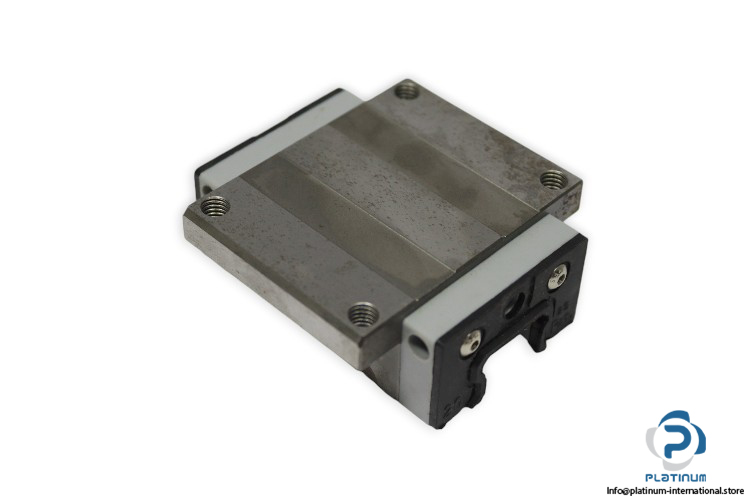

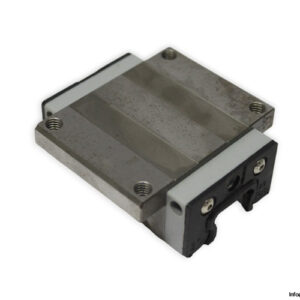

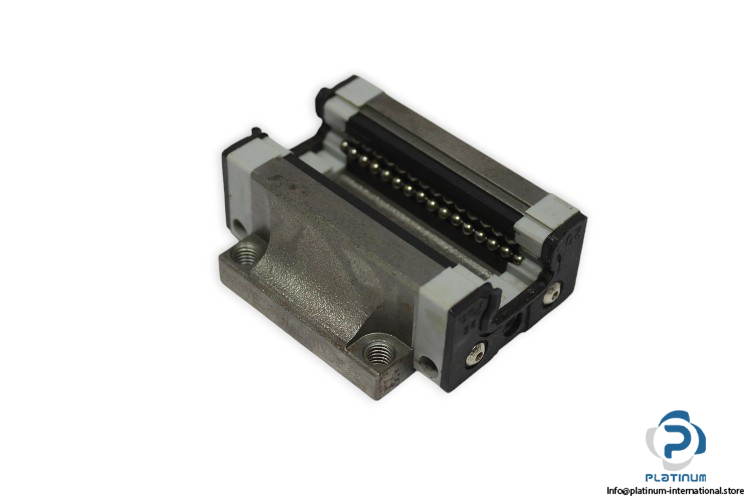

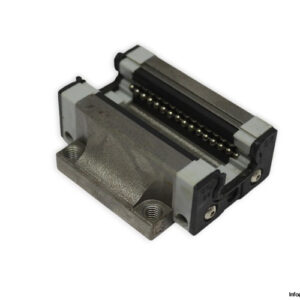

Type:  LINEAR GUIDEWAY BLOCK BGX

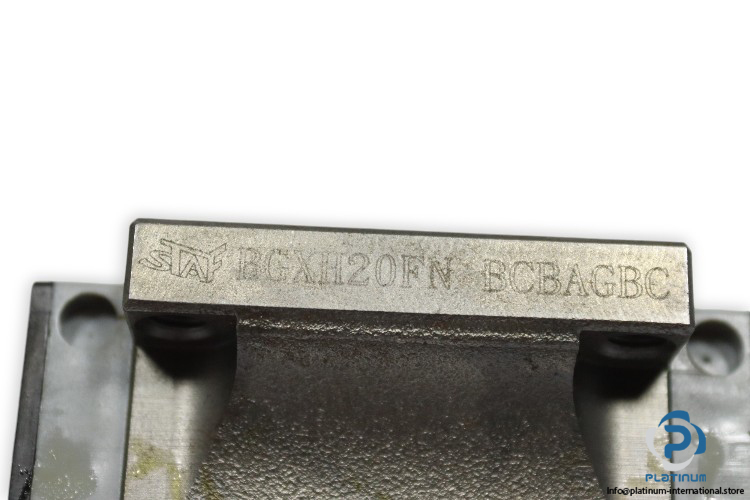

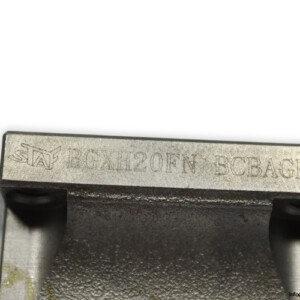

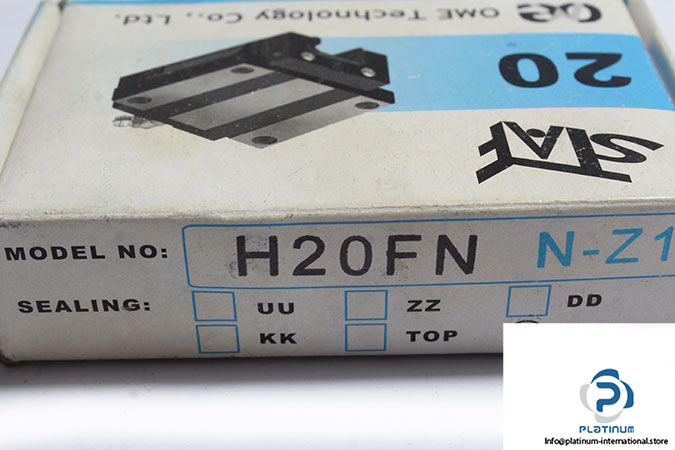

Model:  BGX H20FN

Size: 20 mm
Carriage design: Flanged block
Carriage length: N, Standard (Normal)
Type and flange: Flange/Standard
Carriage Type: Non-caged
Assembly height: H, High assembly
Basic Load Ratings:
The basic dynamic load C: 14.3 kN
The basic static load C0: 30.5 kN

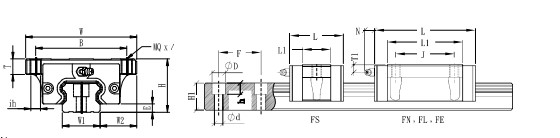

Dimensions
Total Height H: 30 mm
Block Width W: 63 mm
Block Length L: 69.3 mm
Block Height H: 25.5 mm
B: 53 mm
J: 40 mm
