Manufacturer: STAF
Type: Linear Guideway Block BGX
Model: BGX H35FN
Size: 35mm
Block Type: Flanged block
Preload class: Z1, Light preload
Accuracy class: N, normal
Basic Load Ratings:
Dynamic C: 42.4 kN
Static C0: 81.1 kN

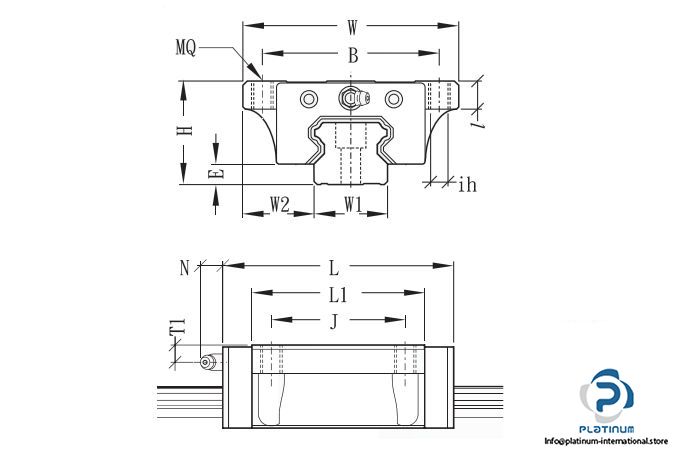

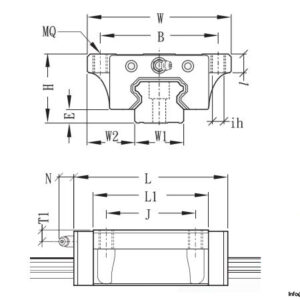

Dimensions
Total Height H: 48 mm
Block Width W: 100 mm
Block Length L: 111.5 mm
B: 82 mm
J: 62 mm
