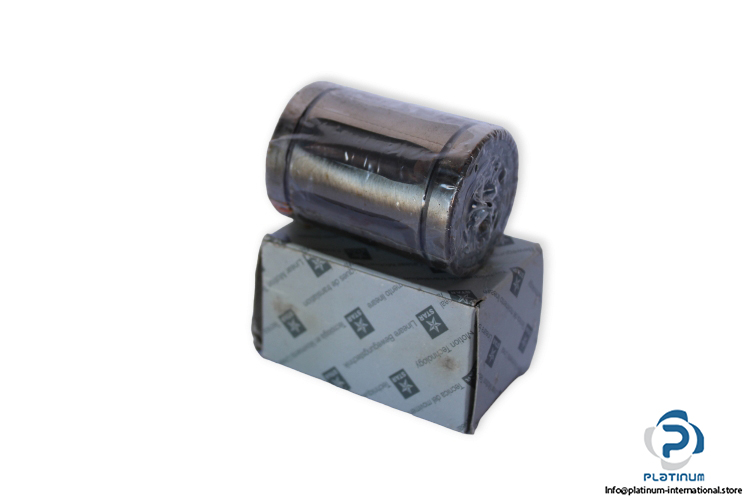

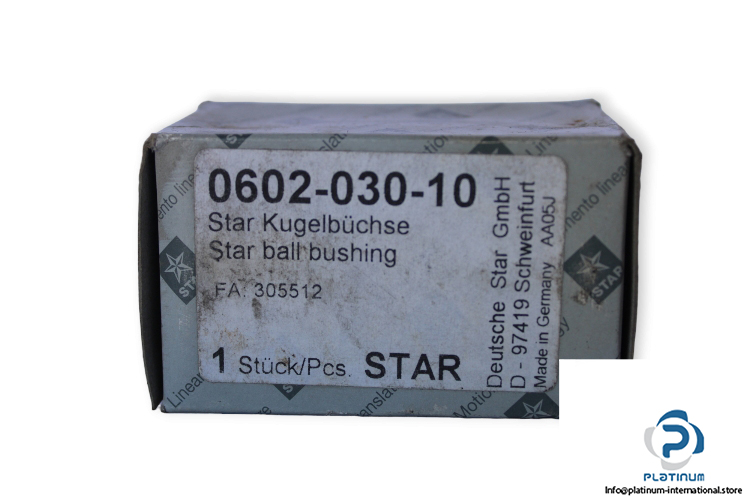

STAR 0602-030-10 STANDARD LINEAR BUSHING

star-0602-030-10-standard-linear-bushing-(new)-(carton)
star-0602-030-10-standard-linear-bushing-(new)-(carton)-1
star-0602-030-10-standard-linear-bushing-(new)-(carton)-2
star-0602-030-10-standard-linear-bushing-(new)-(carton)
star-0602-030-10-standard-linear-bushing-(new)-(carton)-1
star-0602-030-10-standard-linear-bushing-(new)-(carton)-2

STAR 0602-030-10 STANDARD LINEAR BUSHING

STANDARD LINEAR BUSHING

Closed-type STAR / Rexroth R060203010 linear bushing designed for 30 mm shafts. Offers 6 ball circuits, high-speed motion, and low friction”ideal for industrial automation systems.

SKU: 1029384 Category: Tags: , , , , , , , , , , , , , , , , , , , , , ,
In stock: 21 pcs
Good availability
Ready to ship from our warehouse.
Add to quote

STAR / REXROTH R060203010 LINEAR BUSHING

The STAR / Rexroth R060203010 Standard Linear Bushing is engineered for smooth linear motion with high dynamic load ratings and precise shaft guidance. Designed for use in demanding automation and industrial applications, this closed-type linear bearing offers excellent durability, speed, and sealing performance.

Manufacturer: STAR / REXROTH
Type: Standard Linear Bushing
MNR: R060203010

Technical Information

  • Shaft Diameter d: 30 mm
  • Design Type: Closed type
  • No. of Ball Circuits: 6
  • Max. Acceleration (amax): 100 m/s²
  • Maximum Linear Speed (vmax): 2.5 m/s
  • Breakaway Force: 18 N
  • Friction Force: 6 N
  • Dynamic Load Rating: Cmin: 2820 N, Cmax: 2980 N
  • Static Load Rating: C0min: 2230 N, C0max: 2860 N

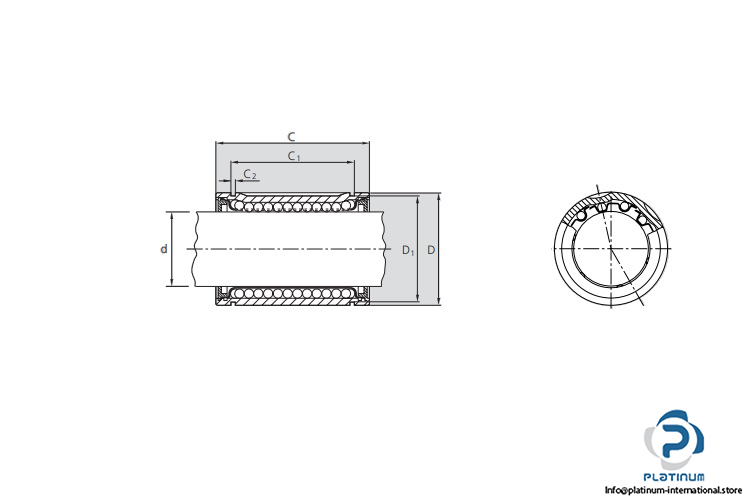

  • Dimensions: D: 47 mm, C: 68 mm, C1: 51.7 mm, C2: 1.85 mm, D1: 44.5 mm
  • Permissible Ambient Temperature: -10 / 80 °C
  • Sealing: With two wiper seals
Weight0,32 kg
