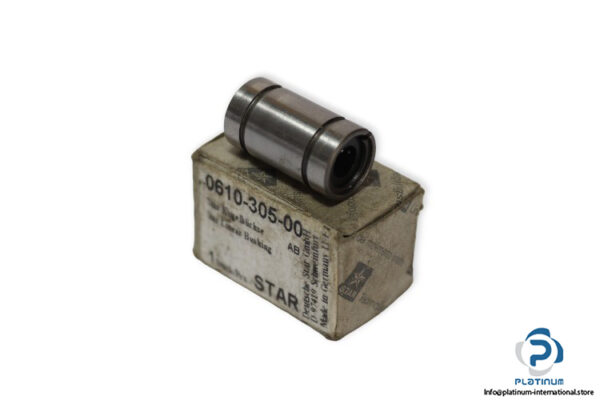

STAR / REXROTH R061030500 LINEAR BUSHING

The STAR / REXROTH R061030500 is a precision-engineered standard linear bushing designed for reliable and smooth linear motion. With an adjustable design and robust construction, it is well-suited for demanding mechanical and automation applications.

Manufacturer: STAR / REXROTH
Type: Standard Linear Bushing
MNR: R061030500

Technical Information

• Shaft Diameter d: 5 mm
• Design Type: Adjustable Type
• No. of Ball Circuit: 4
• Dynamic Load Rating: 180 N
• Static Load Rating: 140 N

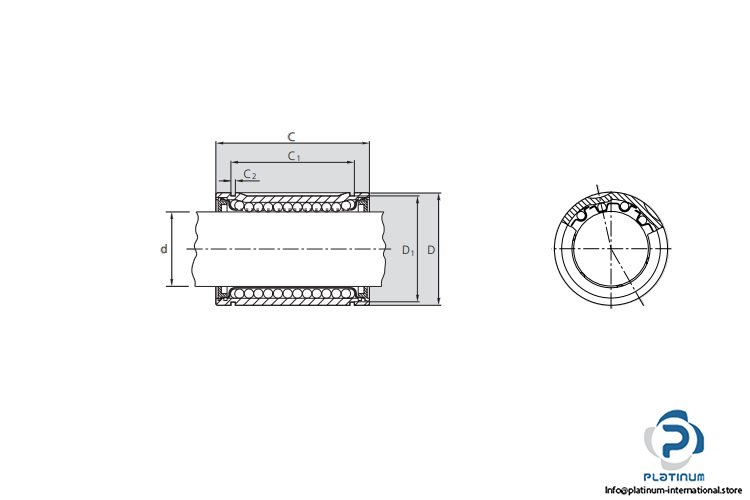

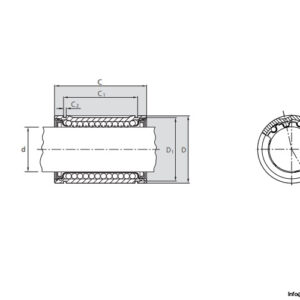

• Dimensions:
• D: 12 mm
• C: 22 mm
• C1: 14.2 mm
• C2: 1.1 mm
• D1: 11.1 mm
• E: 1.5 mm
• Permissible Ambient Temperature: -10 / 80 °C
