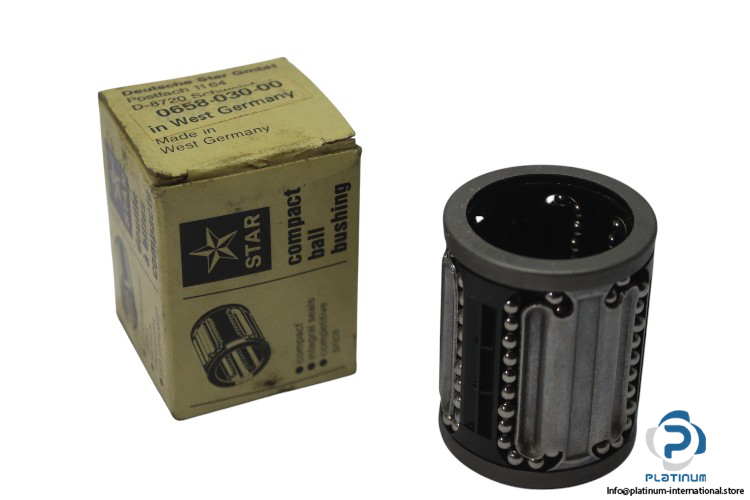

Star Rexroth Compact Linear Bushing R065803000
The Star Rexroth Compact Linear Bushing R065803000 is designed for efficient linear motion in industrial applications. It provides high dynamic and static load capacity, ensuring smooth operation in demanding environments.
Manufacturer: Star Rexroth
Type: Compact Linear Bushing
MNR: R065803000
Technical Information:
- Shaft Diameter (d0): 30 mm
- Outer Diameter: 40 mm
- Length of Linear Bushing: 50 mm
- Rows of Balls: 6
- Dynamic Load Rating (Cmin): 3060 N
- Dynamic Load Rating (Cmax): 3250 N
- Static Load Rating (C0min): 1880 N
- Static Load Rating (C0max): 2790 N
