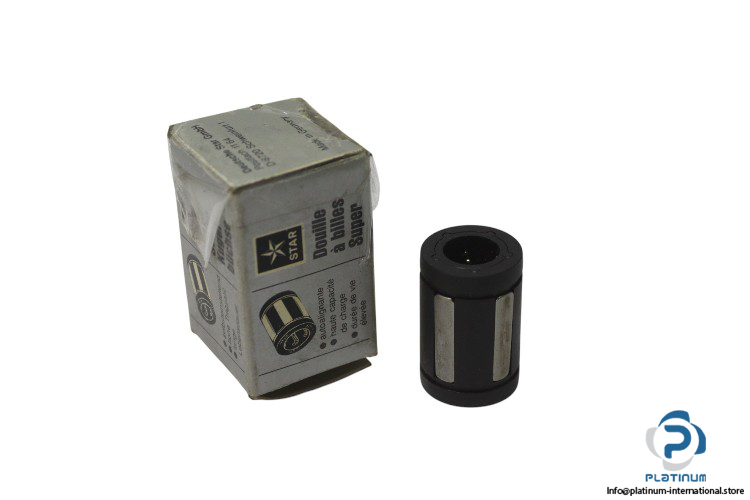

Star Rexroth Super Linear Bushing R067001000
The Star Rexroth Super Linear Bushing R067001000 is designed for high-precision, efficient linear motion with a compact design and excellent load capacity, making it suitable for a wide range of industrial applications.
Manufacturer: Star Rexroth
Type: Super Linear Bushing
MNR: R067001000
Technical Information:
- Shaft Diameter (d0): 10 mm
- Outer Diameter: 19 mm
- Length of Linear Bushing: 29 mm
- Rows of Balls: 5
- Dynamic Load Rating (Cmin): 600 N
- Dynamic Load Rating (Cmax): 820 N
- Static Load Rating (C0min): 330 N
- Static Load Rating (C0max): 480 N
