SICK STEGMANN DGS60-G4B00050 INCREMENTAL ENCODER
This high-precision incremental encoder is engineered for industrial environments where accurate motion control and durability are essential. The DGS60-G4B00050 offers a solid 50-line resolution, HTL electrical interface, and robust IP67 protection, making it a dependable choice for automation systems.
Manufacturer: SICK STEGMANN
Type: Incremental Encoder
Model: DGS60-G4B00050

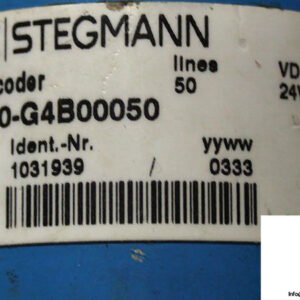

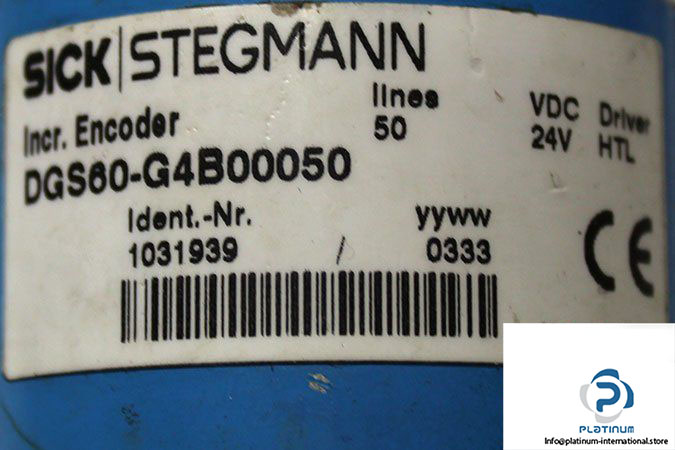

ID No.: 1031939 / 0333
Technical Information
- Flange Type: Face mount flange

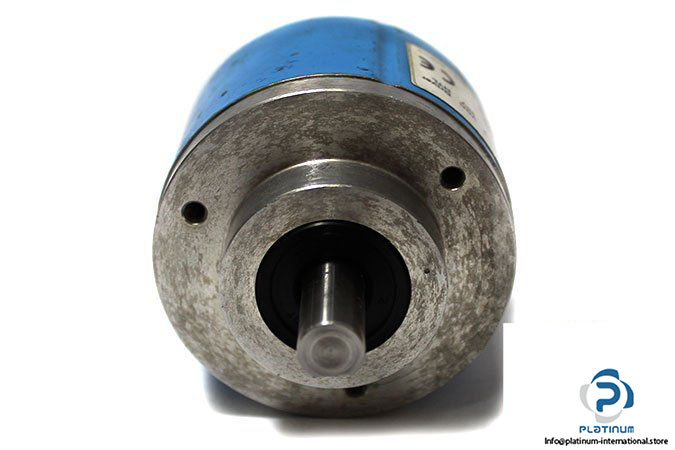

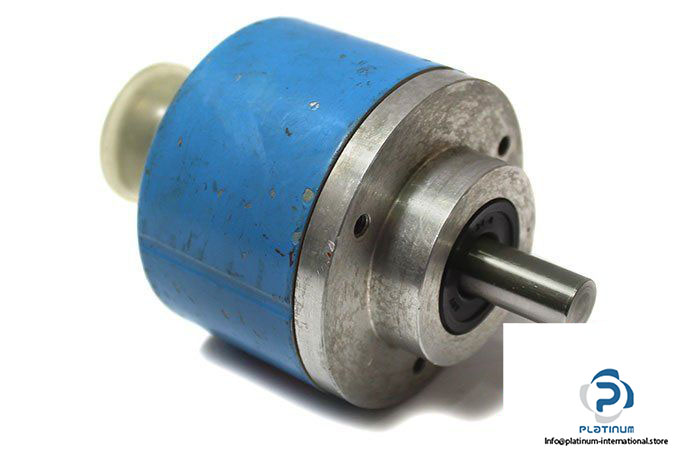

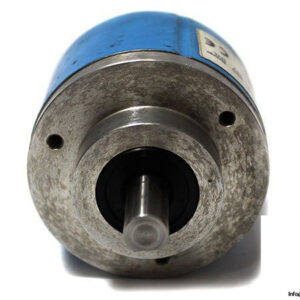

- Shaft Type: Solid shaft
- Shaft Diameter: 10 mm
- Resolution: 50 Lines
- Voltage Supply: 24 VDC
- Switching Frequency: 0 / 200 kHz
- Electrical Interface: HTL (Push pull)

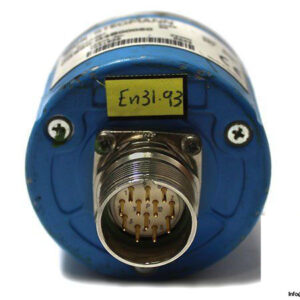

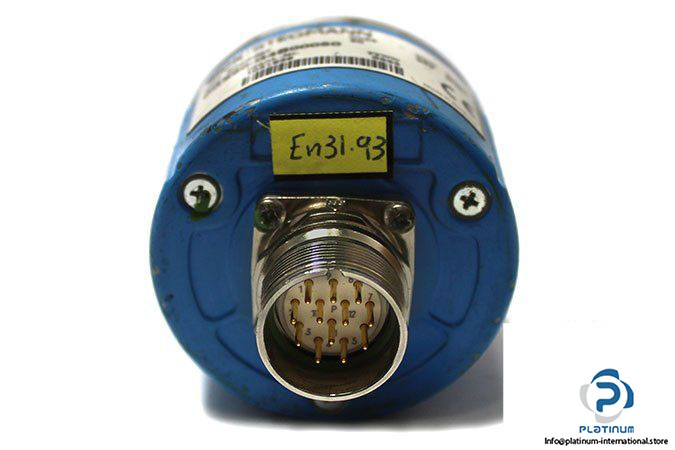

- Connection Type: Connector M23, 12 pin, Axial
- Load Current: 60 mA
- Protection Class: IP67
- Temperature Range: -20 / 85 °C
