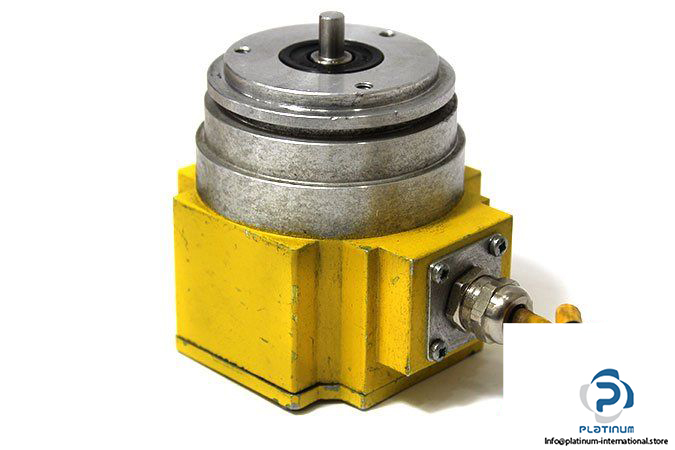

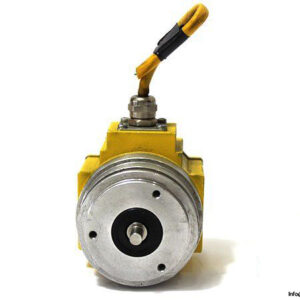

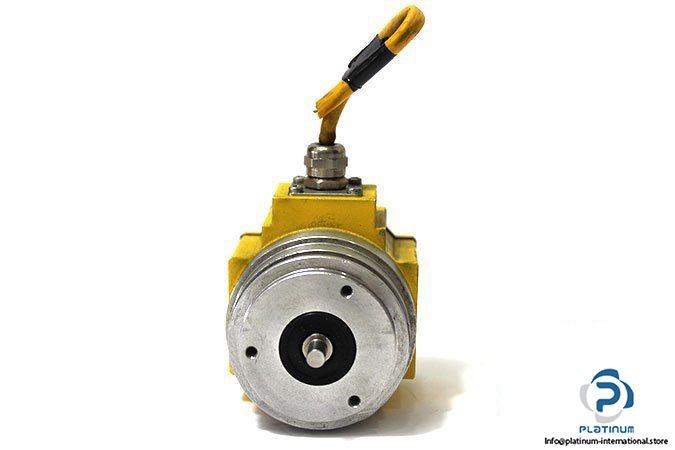

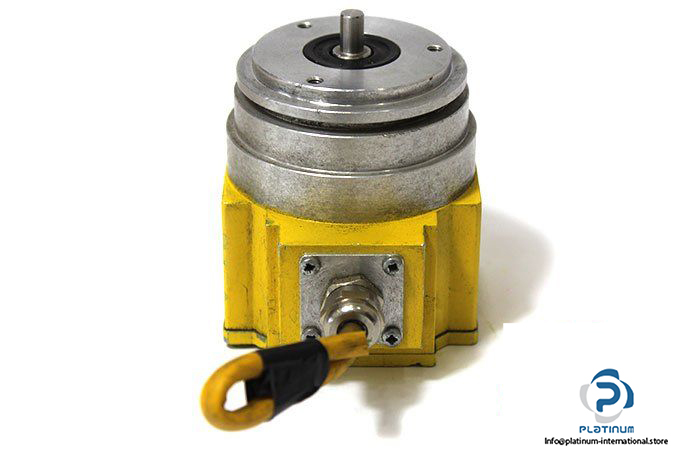

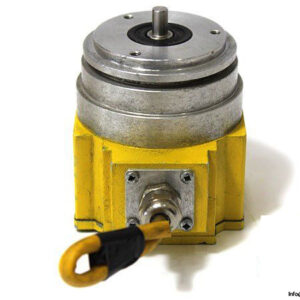

STEGMANN / SICK SRM-50-C30 MOTOR FEEDBACK SYSTEM

The SRM-50-C30 by STEGMANN / SICK is a precision motor feedback system engineered for accurate positional control in motion applications. With high-resolution output and robust construction, this unit ensures reliability in automation systems and servo environments.

Manufacturer: STEGMANN / SICK
Type: Motor Feedback System

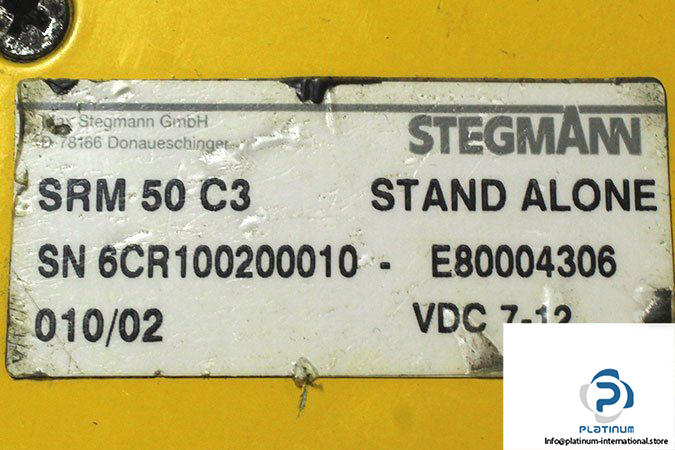

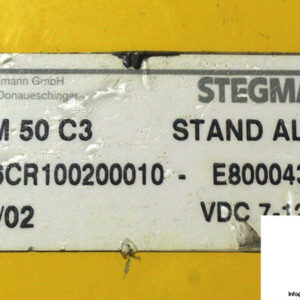

Model: SRM-50-C30
Serial No.: 6CR100200010-E80004306
Ref No.: 010/02

Technical Information

• Flange Type: Face mounting flange
• Shaft Type: Solid shaft
• Shaft Diameter: 6 mm
• Sine/Cosine Periods per Revolution: 1,024
• Total Number of Steps: 134,217,728 (Multi SRM)
• Voltage Supply: 7 / 12 VDC
• Switching Frequency: 0 / 200 kHz
• Type of Code: Binary
• Current Consumption: 80 mA
• Protection Class: IP40
• Temperature Range: -20 / 85 °C
