Manufacturer: STEINMEYER
Type: DIN standard flanged nut with UNILOCK preload
Model: 1516/10.40.1190.1680
Nut type: 1516/10.40.7,5.3

Size: 40
Nominal Diameter d_N: 40 mm
Lead P: 10 mm

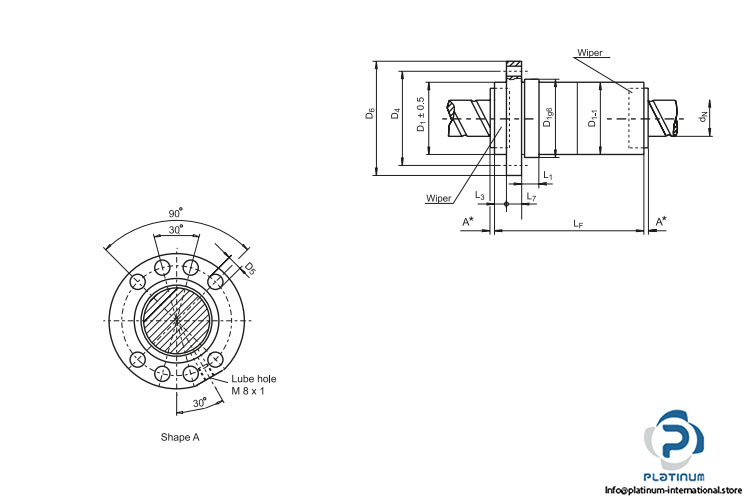

Dimensions:
Flange diameter D₆: 93 mm
Nut outer diameter D₁ g6: 63 mm
Nut length L_F: 147 mm
Flange thickness L₇: 14 mm
L₁: 16 mm
D₄: 78 mm
No. of circuits i: 3
Ball diameter d_W: 7.5 mm
Direction of Lead: Right-Hand Thread
Dynamic load rating C_a: 46.1 kN
Static load rating C_0a: 71.3 kN
Stiffness R_{nu, ar}: 630 N/µm
Threaded length: 1190 mm
Total screw length: 1680 mm
