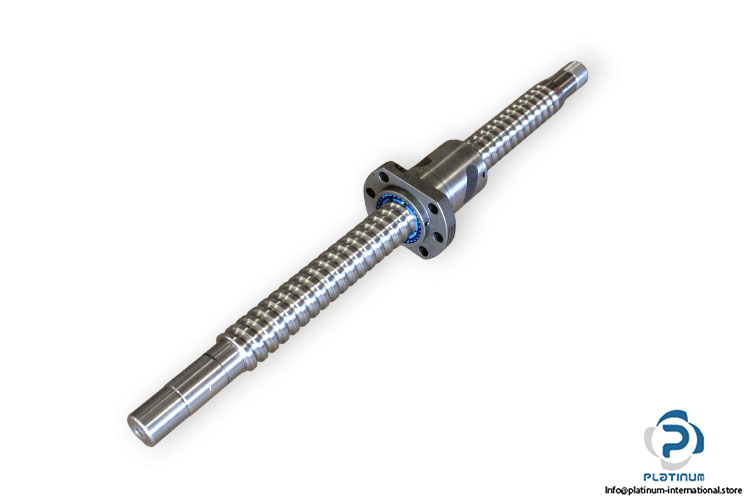

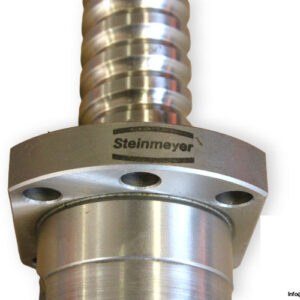

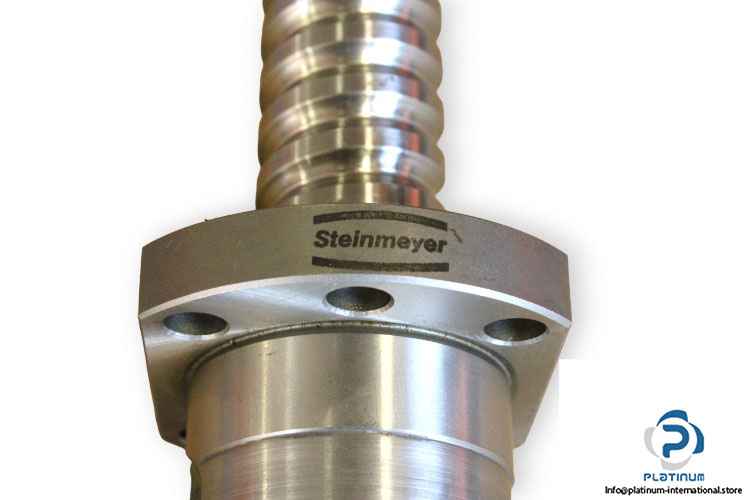

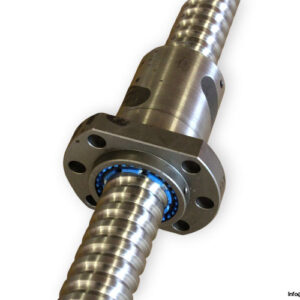

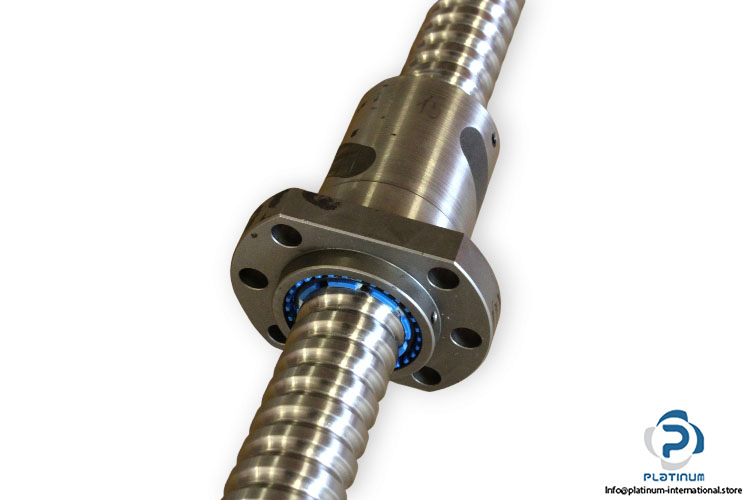

Manufacturer: STEINMEYER
Type: DIN Standard Flanged Nut, Ball Oversize Preload
Model: 1416/10.32.390.520
Nut type: 1416/10.32.6.3

Size: 32
Nominal Diameter d_N: 32 mm

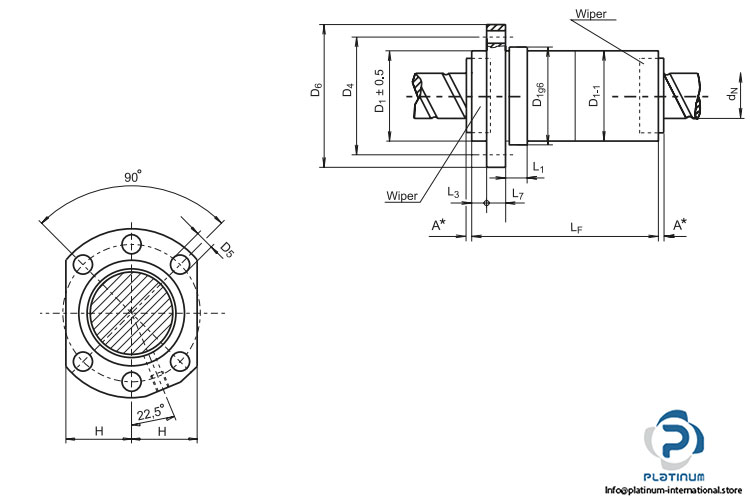

Dimensions:
Flange diameter D₆: 80 mm
Nut outer diameter D₁ g6: 50 mm
Nut length L_F: 84 mm
Flange thickness L₇: 12 mm
Cutting Flange Width(2H): 62 mm
L₁: 16 mm
D₄: 65 mm
Lead P: 10 mm
No. of circuits i: 3
Ball diameter d_W: 6 mm
Direction of Lead: Right-Hand Thread
Dynamic load rating C_a: 30.8 kN
Static load rating C_0a: 45.6 kN
Stiffness R_{nu, ar}: 300 N/µm
Threaded length: 390 mm
Total screw length: 520 mm
