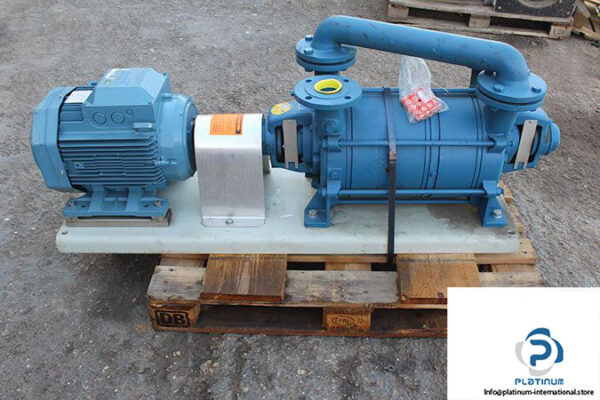

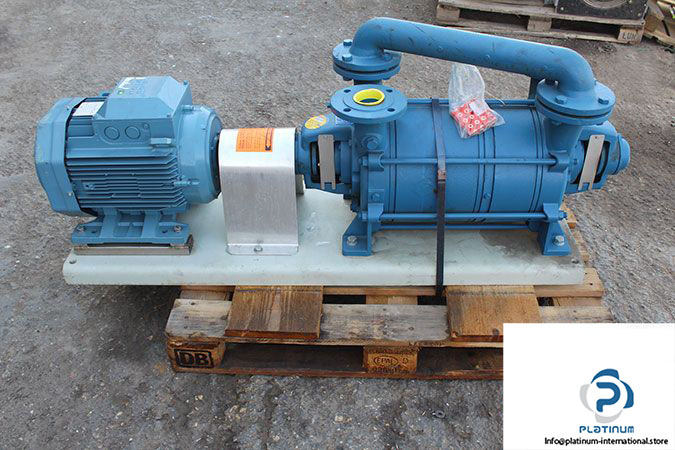

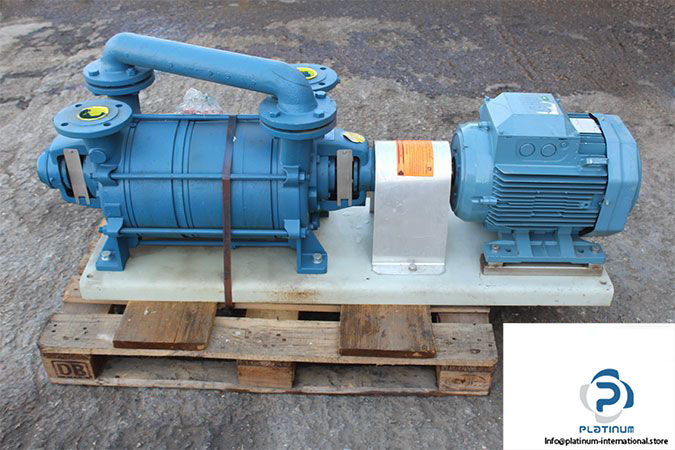

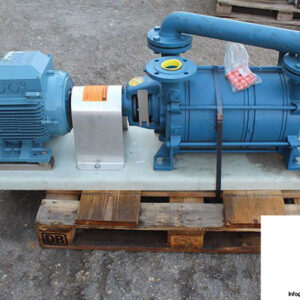

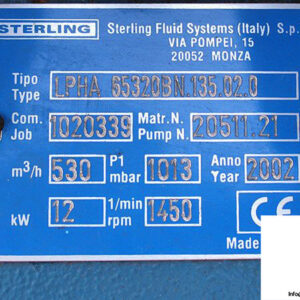

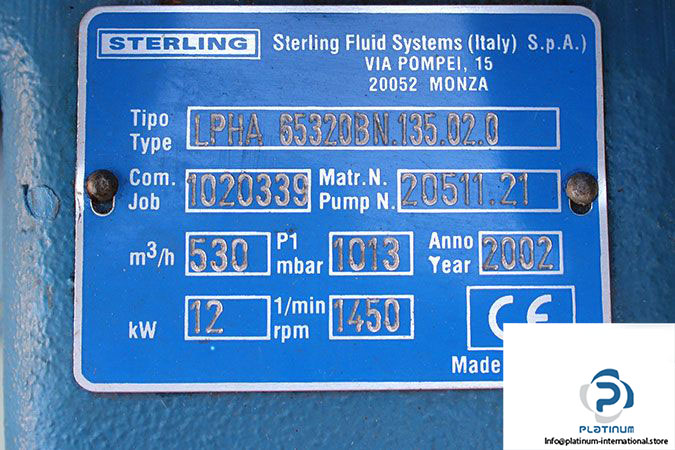

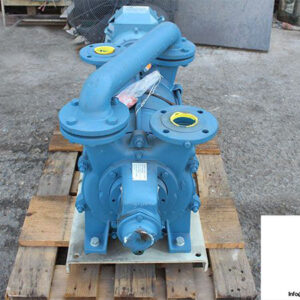

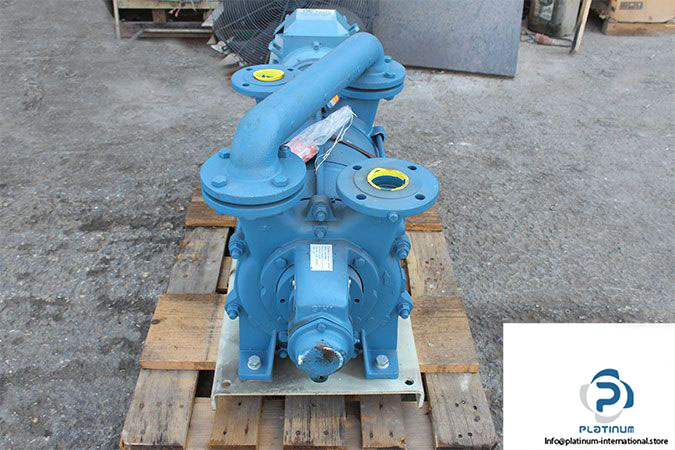

Manufacturer: Sterling Fluid Systems
Type: Liquid Ring Vacuum Pumps
Model: LPHA65320BN.135.02.0
Pressure Range [mbar]: 33…1013
Suction Volume Flow [m3/h]: 300…700
Rated Power [kW]: 12
Normal Speed [rpm]: 1450
Max. Compression Over Pressure [bar]: 2
Max. Admissible Difference [bar]: 1.6
Hydraulic Test Over Pressure [bar]: 3
Max. Admissible Temperature [°C]: 80

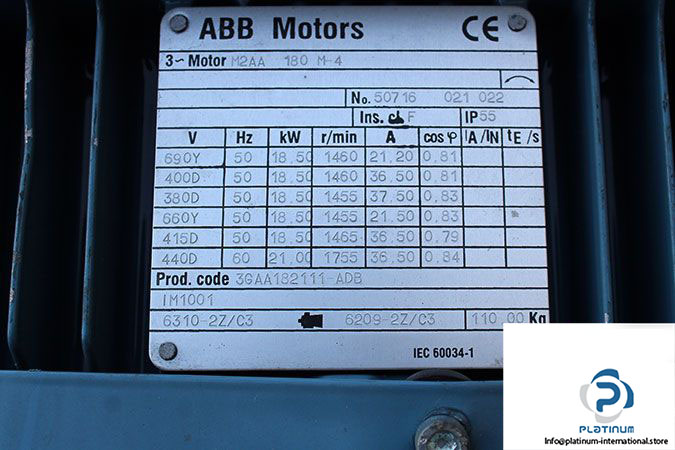

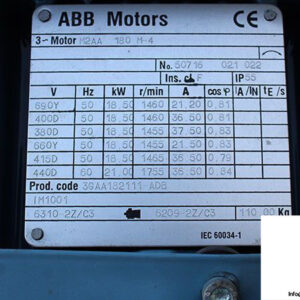

Attachment: ABB MOTORS M2AA 180 M-4 3-PHASE ELECTRIC MOTOR
Manufacturer: ABB
Type: 3-Phase Electric Motor
Model: M2AA180M-4
Product Code: 3GAA182111-ADB
Rated Voltage at 50Hz [V]: 380–400-415/660-690 Delta/Star
Rated Voltage at 60Hz [V]: 440 Delta
Frequency [Hz]: 50/60
Rated Current [A]: 37.5-36.5-36.5-21.5-21.2/36.5
Rated Power [kW]: 18.5/21
Rated Speed [min-1]: 1455-1460-1465/1755
Power Factor [%]: 0.79-0.81-0.83-0.84
Protection Class [IP]: 55
Thermal Class: F
