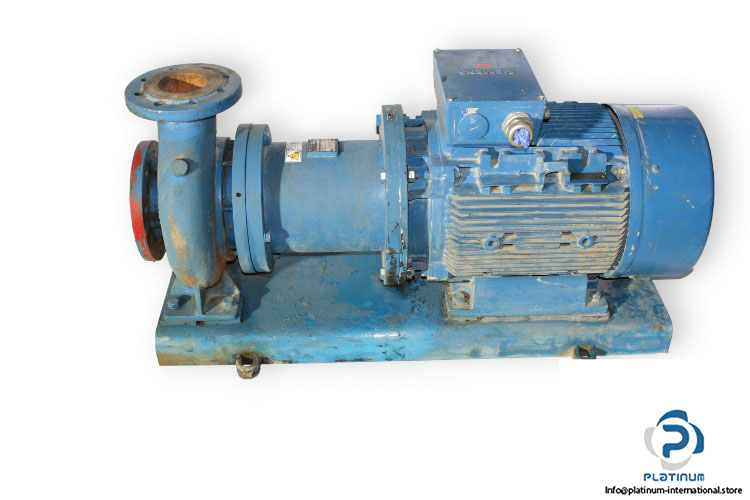

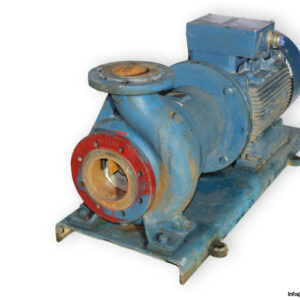

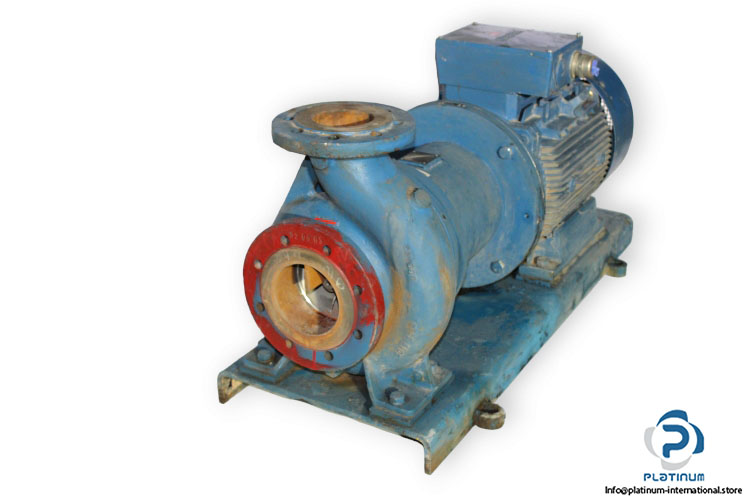

STERLING SIHI / HALBERG HORIZONTAL PUMP – CBED100200CF6AE1E2Y

The CBED100200CF6AE1E2Y horizontal pump by Sterling SIHI / Halberg is engineered for industrial fluid transfer applications requiring high flow and reliable power. Featuring a robust design, it delivers excellent hydraulic performance across a range of conditions.

Manufacturer: STERLING SIHI / HALBERG
Type: Horizontal Pump
Model: CBED100200CF6AE1E2Y
Part No.: LU0211502802

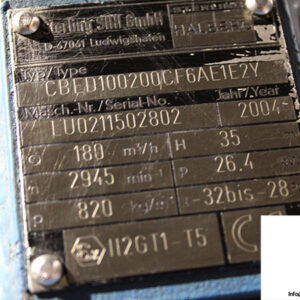

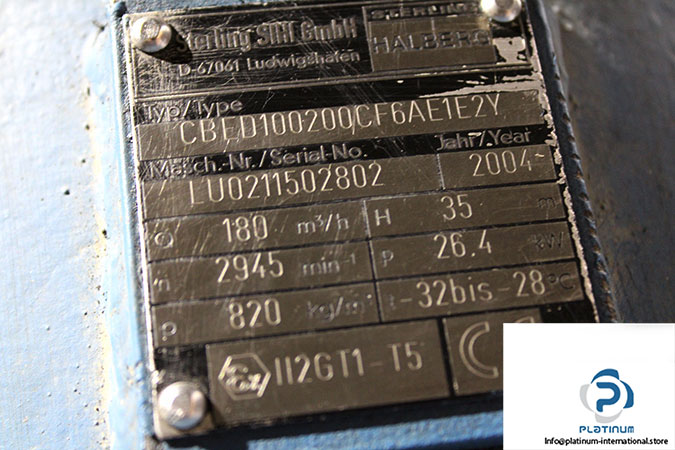

Technical Information

• Rated Power: 26.4 kW
• Rated Speed: 2945 min^-1
• Capacity: 180 m³/h
• Height: 35 m
• Density Value: 820 kg/m³

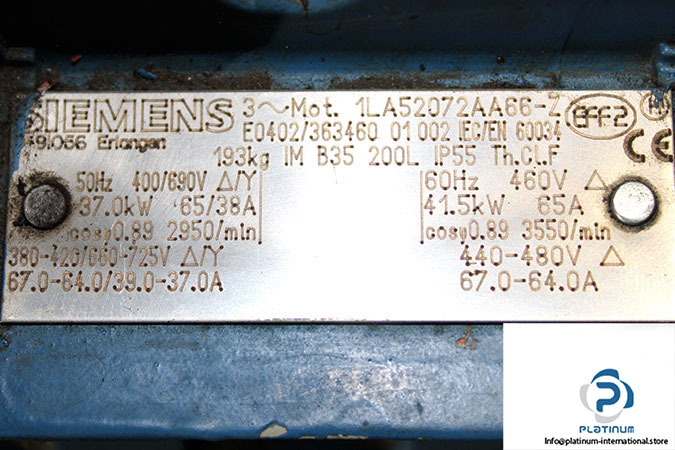

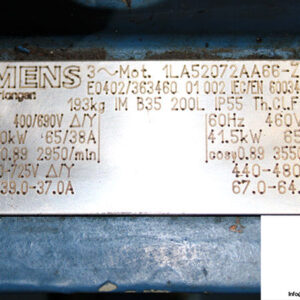

Attached Motor – SIEMENS 1LA52072AA66-Z

Manufacturer: SIEMENS
Type: Motor
Model: 1LA52072AA66-Z
Standard: IEC/EN 60034

Motor Specifications (50 Hz)

• Voltage: 400/690 V (Delta/Star)
• Current: 65/38 A
• Rated Power: 37 kW
• Rated Speed: 2950 min^-1

Motor Specifications (60 Hz)

• Voltage: 460 V (Delta)
• Current: 65 A
• Rated Power: 41.5 kW
• Rated Speed: 3550 min^-1
