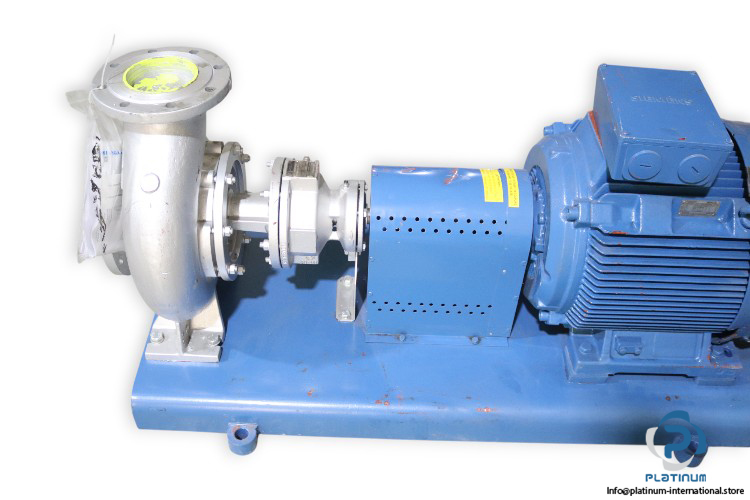

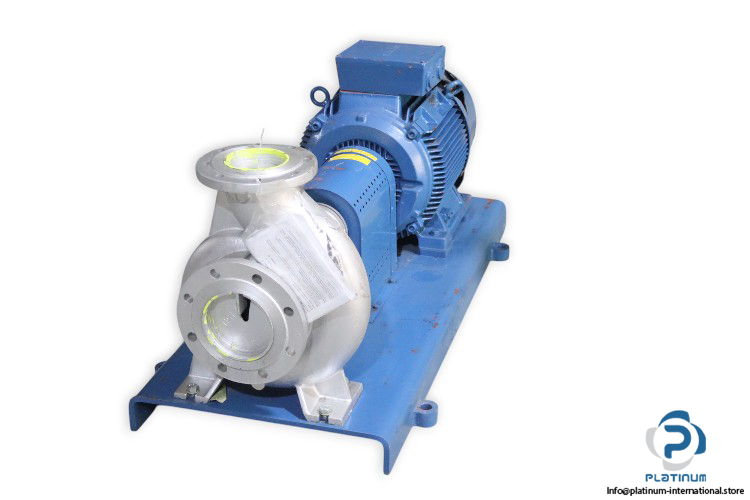

Sterling Sihi ZHND 125200 Volute Pump with Siemens 1LG4223-2AA60-Z 225M Motor

The Sterling Sihi ZHND 125200 volute pump is engineered for high-capacity fluid handling, delivering up to 600 m³/h with robust performance under demanding industrial conditions. Paired with a Siemens 1LG4223-2AA60-Z 225M motor, it provides reliable operation, high efficiency, and adaptability to varying speeds and loads.

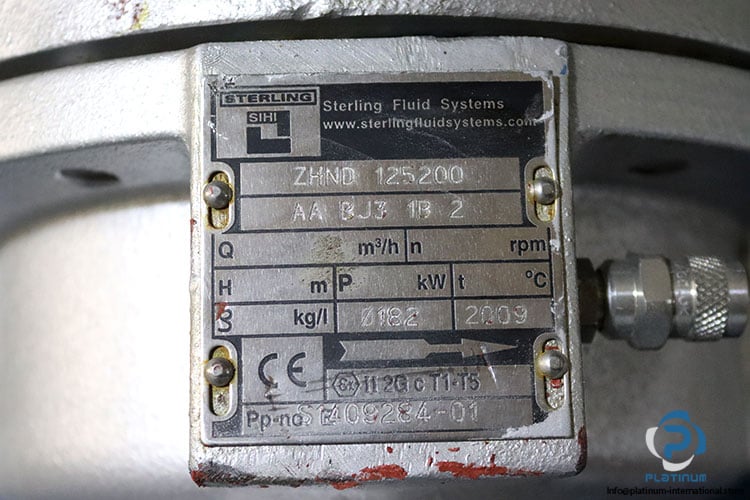

Manufacturer: Sterling Sihi
Type: Volute Pump
Model: ZHND 125200
Part No.: AA BJ3 1B 2
Pp-no: S1409284-01
Code: 182

Technical information

• Bearing Bracket: Bracket 35
• Output: Max. 600 m³/h
• Casing Pressure: PN 16
• Speed: 3000 rpm
• Medium Temperature: Max. 180 °C
• Delivery Head: Max. 95 m
• Shaft Sealing: BJ3, unbalanced standard mechanical seal
• Casing Gasket: Confined flat gasket of graphite with A4 insertion
• Sense of Rotation: Clockwise (viewed from drive end)

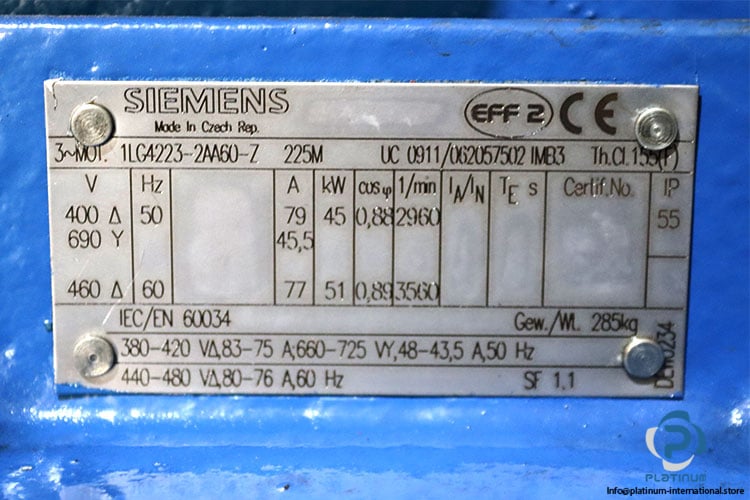

Attachment: Siemens Motor

Manufacturer: Siemens
Type: Motor
Model: 1LG4223-2AA60-Z 225M
Part No.: UC 0911/062057502 IMB3
Frame Size: 225M

@ 50 Hz

• Voltage: 400 V / 690 V
• Current: 79 / 45.5 A
• Power: 45 kW
• Power Factor: cos φ = 0.88
• Speed: 2960 rpm
• Rated Value: 380“420 V, 83“75 A / 660“725 V, 48“43.5 A

@ 60 Hz

• Voltage: 460 V
• Current: 77 A
• Power: 51 kW
• Power Factor: cos φ = 0.89
• Speed: 3560 rpm
• Rated Value: 440“480 V, 80“76 A

• Mounting: IMB3
• Thermal Class: F
• IP Rate: IP55
• Service Factor: 1.1
