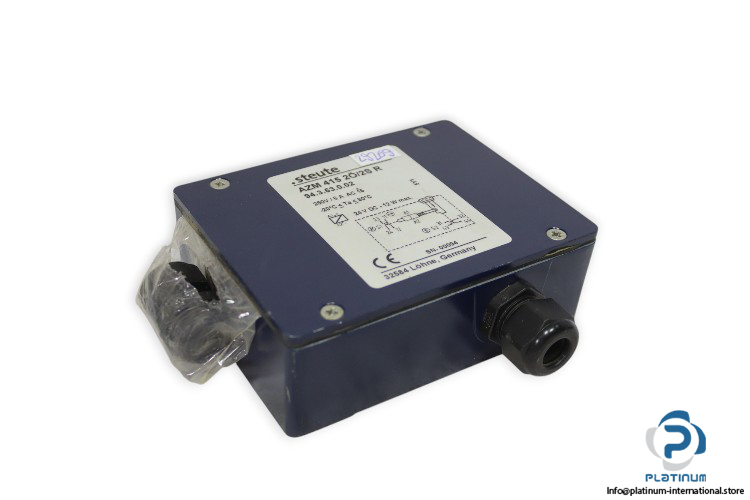

STEUTE AZM 415 2O/2S R Solenoid Interlock
The STEUTE AZM 415 2O/2S R is a robust solenoid interlock designed for industrial safety applications. With high reliability and durable aluminium die-cast housing, it ensures secure machine guarding and dependable performance in demanding environments.
Manufacturer: STEUTE
Type: Solenoid Interlock
Model: AZM 415 2O/2S R
Art. No.: 94353002
Technical Information
- Operational Voltage: 250 V AC
- Rated Current: 6 A
- Insulation Voltage: 250 V AC
- Rated Thermal Current: 6 A
- Rated Impulse Voltage Uimp: 4 kV
- Solenoid Voltage: 24 V DC
- Solenoid Current: 0.08 A
- Power Consumption Max.: 12 W
- Contact: 1 Change-Over (CO)
- Actuator: Tongue Actuator Included
- Housing Material: Aluminium Die Cast
- Protection Class: IP65
- Ambient Temperature: -20 / 80 °C
- Dimensions: 100 x 130 x 46.5 mm
