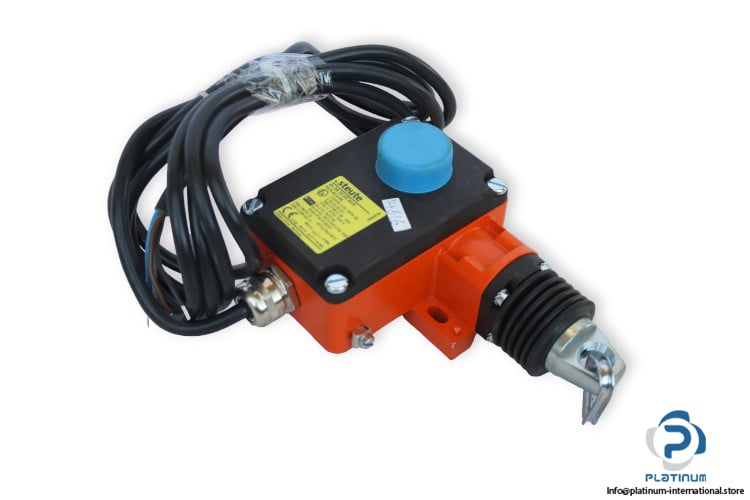

STEUTE EX ZS 73 2O WVD Emergency Pull Wire Switch
The STEUTE EX ZS 73 2O WVD is a robust emergency pull wire switch engineered for safety-critical applications in industrial environments. With a durable die-cast enclosure, high electrical ratings, and long cable reach, it ensures reliable emergency shutdown capability and operator safety.
Manufacturer: STEUTE
Type: Emergency Pull Wire Switch

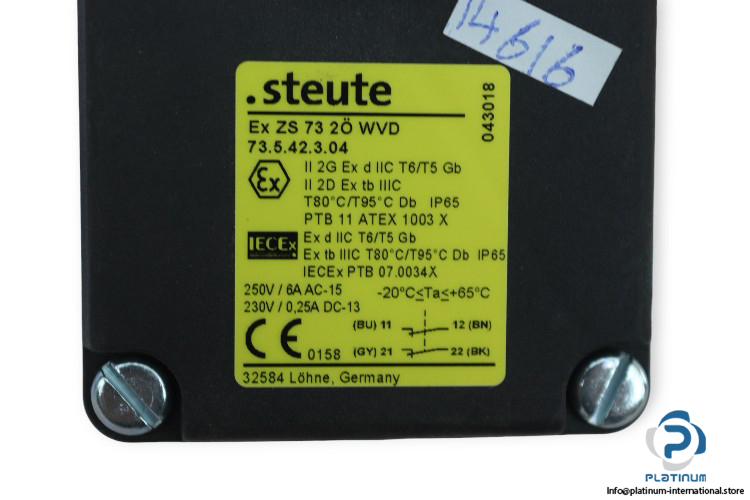

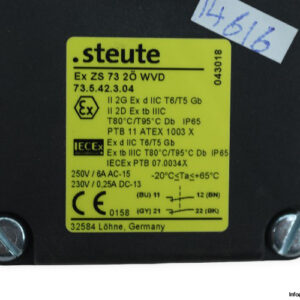

Model: EX ZS 73 2O WVD
Part No.: 73.5.42.3.04
Technical information
- Rated Insulation Voltage (Ui): 250 V
- Conventional Thermal Current (Ith): T6: 6 A, T5: 3 A
- Rated Operating Current/Voltage (Ie/Ue): (AC-15) 6 A/250 VAC; (DC-13) 0.25 A/230 VDC
- Switching System: Slow action, positive break NC contacts
- Switching Elements: 2 NC contacts, type Zb
- Short-Circuit Protection: 6 A gG/gN fuse
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Enclosure Material: Aluminum die-cast, enamel finish
- Cover Material: Thermoplastic, glass-fiber reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of Protection: IP65
- Contact Material: Silver

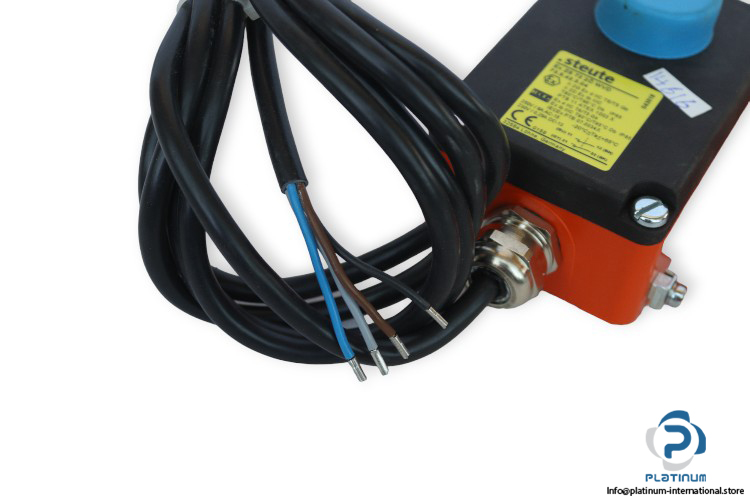

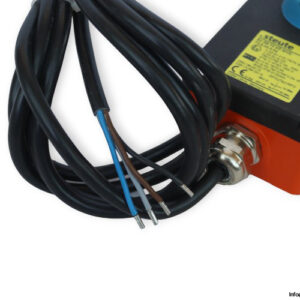

- Connection: Pre-wired cable H05VV-F
- Cable Length: 3 m
- Cable Cross-Section: 4 x 0.75 mm²
- Max. Wire Length: 130 m
- Ambient Temperature: -20 °C / +65 °C
- Dimensions: 166.5 x 105 x 69 mm
